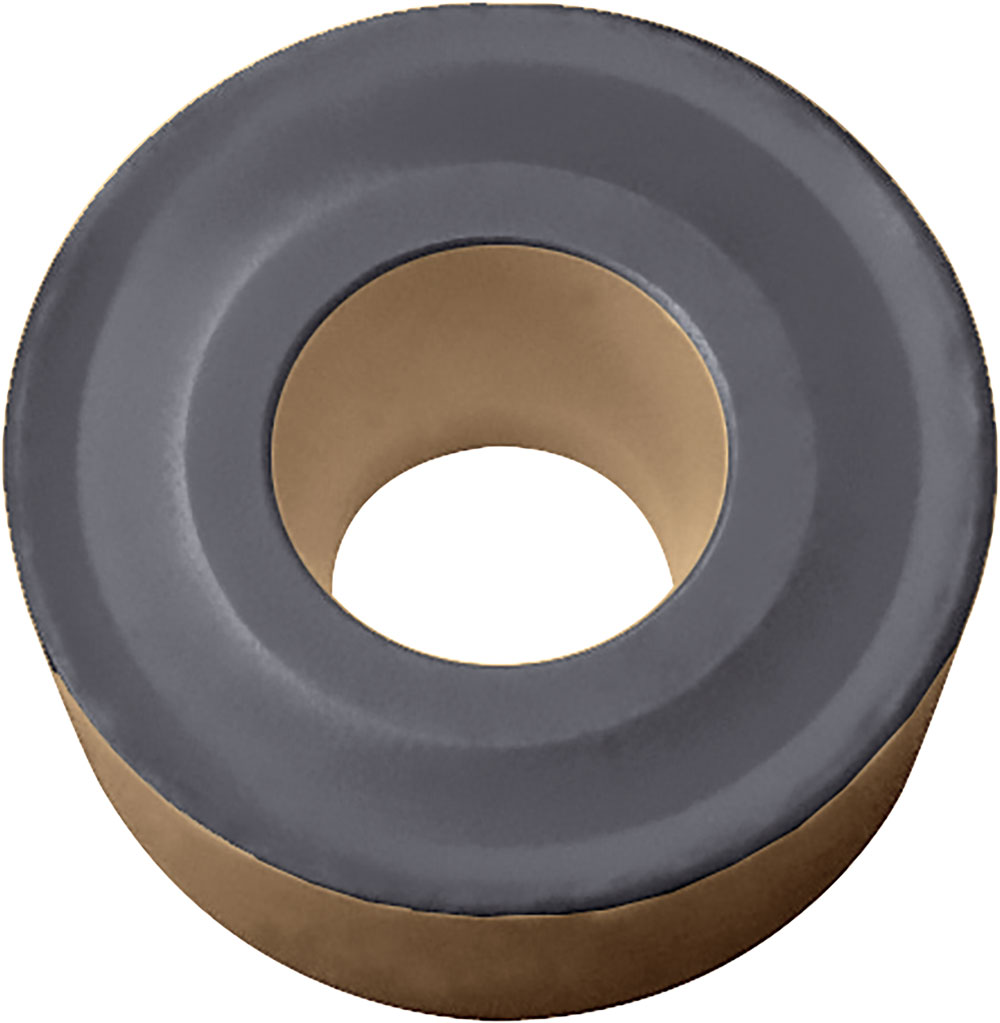

Kyocera Turning Insert RCMX1204M0 TN620: TSR05101

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TSR05101
$16.68

Kyocera ISOI turning insert for steel, 0.4720 in (12.00 mm) IC, round shape, positive rake, medium cutting range, screw or clamp insert holding, neutral hand. Cermet, uncoated. Manufacturer part number TSR05101.

Specifications

Series
ISOI
Unit of Measure
Metric
Hand Direction
Neutral
Material
Cermet
Coating/Finish
Uncoated
Insert Thickness (Metric)
4.76
Insert Style
RCMX
Machining Operations
External Turning, Facing, Undercutting
Insert Shape
Round
Insert Holding Method
Screw or Clamp
Insert Size
1204
Insert Grade
TN620
Workpiece Material
Steel
Rake
Positive
Insert Thickness (Fractional)
3/16
IC Size (Metric)
12.00
IC Size (Decimal)
0.4720
Cutting Range
Medium
Usage Classification
Continuous to Light Interruption
ANSI Designation
RCMX1204M0TN620
ISO Designation
RCMX1204M0
Pack quantity
10
