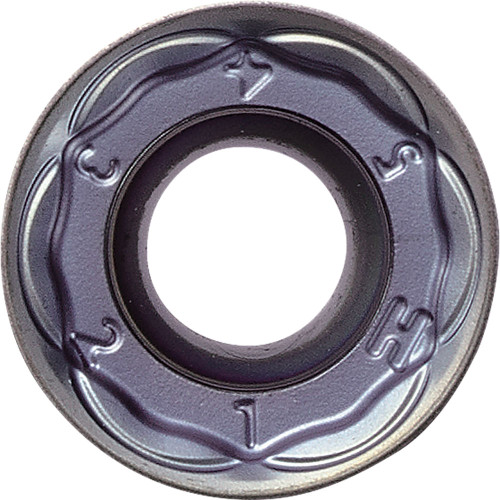

Kyocera RDMT 0803M0ENGH PR1525 Grade PVD Carbide, Indexable Milling Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLB01502
$14.63
Kyocera RDMT 0803M0ENGH PR1525 Grade PVD Carbide, Round, Positive Rake Angle, Neutral Milling Insert for Roughing in (P) Free-Cutting Steel, (P) Carbon/Alloy Steel, (P) Mold Steel and (M) Austenitic Stainless Steel

Specifications

Series
MRX
Unit of Measure
Metric
Cutting Direction
Neutral
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(P) Free-Cutting Steel|(P) Carbon/Alloy Steel|(P) Mold Steel
Grade
PR1525
Inscribed Circle (Metric)
8
Thickness
3.18 mm
Style
RDMT
Application
Facing, Plunging, Pocketing, Shouldering
Thickness (Fractional)
1/8
Shape
Round
Insert Holding Method
Screw
Old Material Number
8839259
ANSI Part Number
RDMT0803M0ENGHPR1525
ISO Part Number
RDMT0803M0EN-GH
Rake
Positive
Insert Size
0803
Chipbreaker
M0EN-GH
Cutting Range
Roughing
Inscribed Circle (Decimal)
0.32
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/RAD-6_MRX_Radius_Milling_Cutter.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Aerospace_Tooling_Solutions_W.pdf
