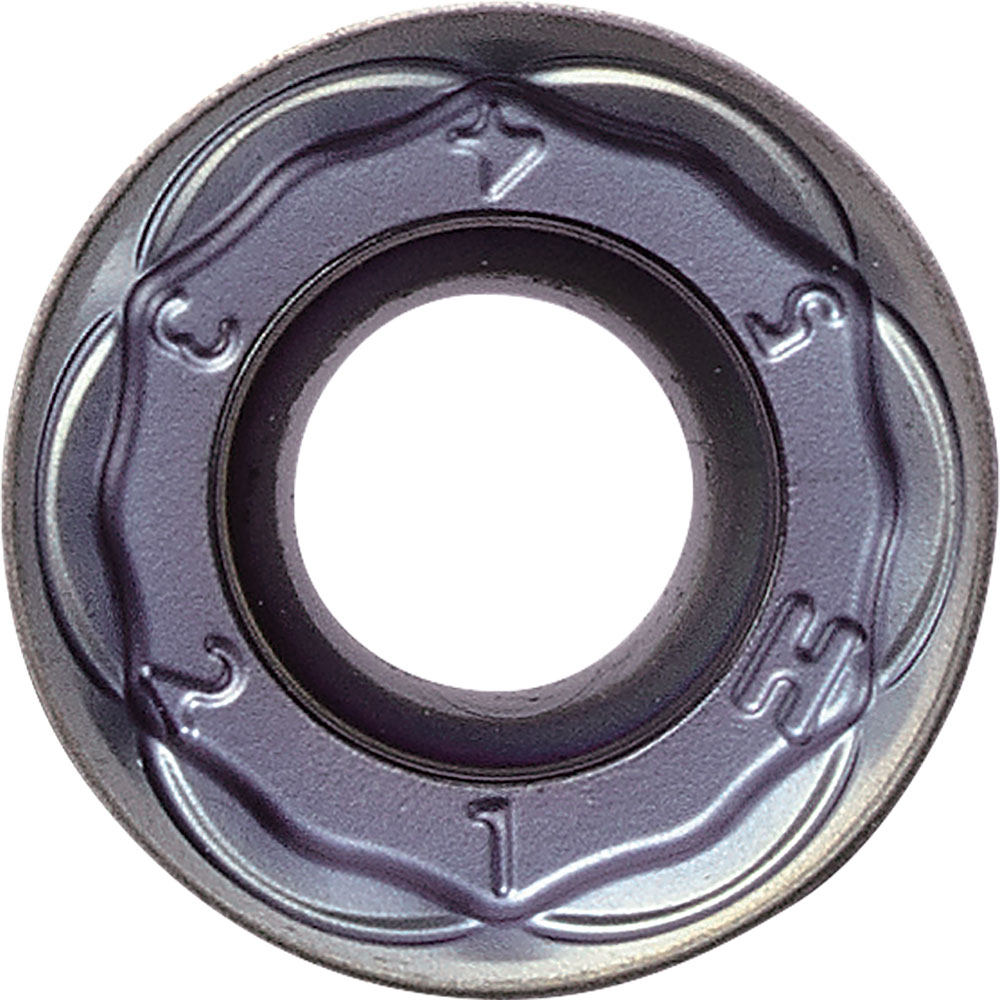

Kyocera RDMT 0803M0ENGH PR1810 Grade PVD Carbide, Indexable Milling Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLS00122
$14.63
Kyocera RDMT 0803M0ENGH PR1810 Grade PVD Carbide, Round, Positive Rake Angle, Neutral Milling Insert for Roughing in (K) Gray Cast Iron, (K) Nodular Cast Iron

Specifications

Series
MRX
Unit of Measure
Metric
Cutting Direction
Neutral
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(K) Gray Cast Iron|(K) Nodular Cast Iron
Grade
PR1810
Inscribed Circle (Metric)
8
Thickness
3.18 mm
Style
RDMT
Application
Facing, Plunging, Pocketing, Shouldering
Thickness (Fractional)
1/8
Shape
Round
Insert Holding Method
Screw
ANSI Part Number
RDMT0803M0ENGHPR1810
ISO Part Number
RDMT0803M0EN-GH
Rake
Positive
Number of Cutting Edges
6
Insert Size
0803
Chipbreaker
M0EN-GH
Cutting Range
Roughing
Inscribed Circle (Decimal)
0.32
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/RAD-6_MRX_Radius_Milling_Cutter.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/PR18-Series_Milling_Grades.pdf
Kyocera RDMT 0803M0ENGH PR1810 Grade PVD Carbide, Indexable Milling Insert
$14.63
