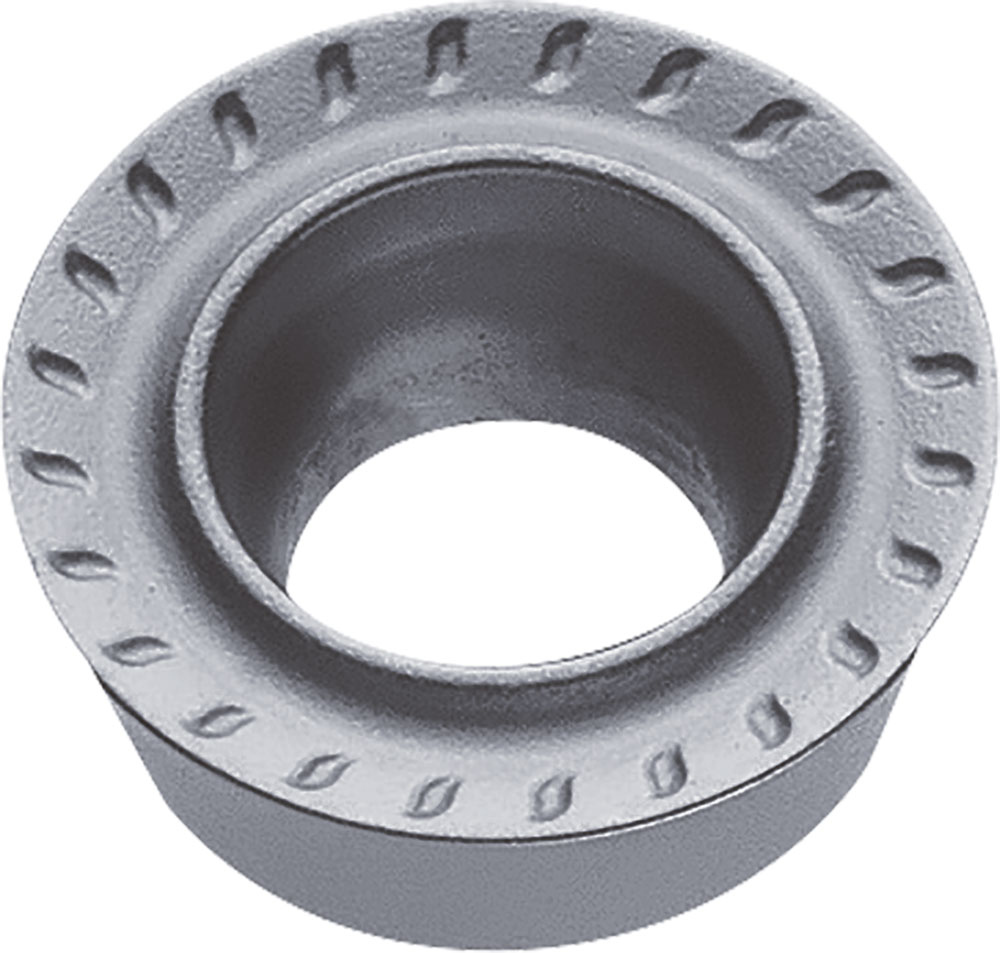

Kyocera RDMT 08T2M0H PR1810 Grade PVD Carbide, Indexable Milling Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLS00111
$19.99
Kyocera RDMT 08T2M0H PR1810 Grade PVD Carbide, Round, Positive Rake Angle, Neutral Milling Insert for Roughing in (K) Gray Cast Iron, (K) Nodular Cast Iron

Specifications

Series
MRP
Unit of Measure
Metric
Cutting Direction
Neutral
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(K) Gray Cast Iron|(K) Nodular Cast Iron
Grade
PR1810
Inscribed Circle (Metric)
8
Thickness
2.78 mm
Style
RDMT
Application
Contouring, Facing, Pocketing, Ramping, Shouldering
Thickness (Decimal)
0.11
Shape
Round
Insert Holding Method
Screw
ANSI Part Number
RDMT08T2M0HPR1810
ISO Part Number
RDMT08T2M0-H
Rake
Positive
Insert Size
08T2
Chipbreaker
M0H
Cutting Range
Roughing
Inscribed Circle (Decimal)
0.32
Pack quantity
10
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/PR18-Series_Milling_Grades.pdf
