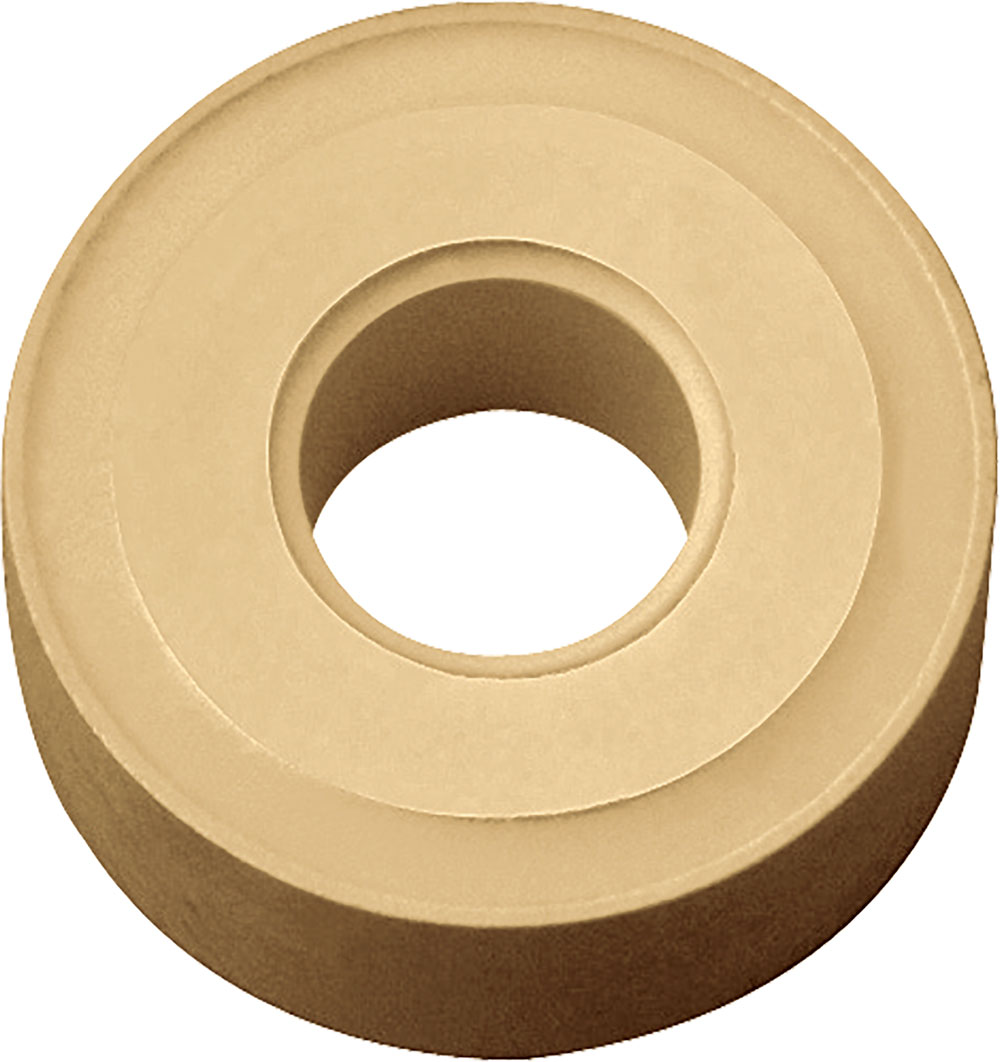

Kyocera RNMG 43 PV7005 Grade PVD Cermet, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TJA05072
$20.19
Kyocera RNMG 43 PV7005 Grade PVD Cermet, 0 Degree, Round, Negative Rake Angle, Turning Insert for Continuous and Medium-Roughing in (K) Gray Cast Iron

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Neutral
Material
Cermet
Coating/Finish
PVD
Primary Workpiece Material
(K) Gray Cast Iron
Thickness
3/16 Inch
Style
RNMG
Application
External Turning, Facing, Undercutting
Shape
Round
Insert Holding Method
Screw or Clamp
Size
43
Old Material Number
8827503
ANSI Part Number
RNMG43PV7005
ISO Part Number
RNMG120400
Rake
Negative
Material Group / Grade
PV7005
Number of Cutting Edges
n/a
Thickness (Metric)
4.76
Cutting Range
Medium-Roughing
Usage Classification
Continuous
Inscribed Circle (Metric)
12.70
Inscribed Circle
1/2 Inch
Pack quantity
10
