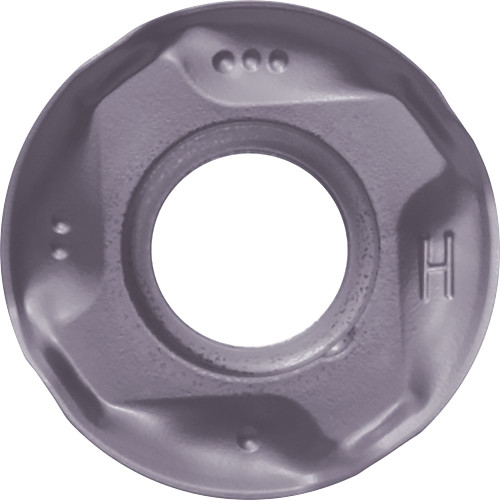

Kyocera ROMU 1204M0ERGH PR1535 Grade PVD Carbide, Indexable Milling Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLC01102
$34.97
Kyocera ROMU 1204M0ERGH PR1535 Grade PVD Carbide, Round, Positive Rake Angle, Right-Hand Milling Insert for Roughing in (M) Austenitic Stainless Steel, (M) Precipitation Hardened Stainless Steel, (S) Titanium Alloy and (P) Carbon/Alloy Steel, (P) Mold Steel, (M) Martensitic Stainless Steel, (S) Heat-Resistant Alloy

Specifications

Series
MRW
Unit of Measure
Metric
Cutting Direction
Neutral
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(M) Austenitic Stainless Steel|(M) Precipitation Hardened Stainless Steel|(S) Titanium Alloy
Grade
PR1535
Inscribed Circle (Metric)
12
Thickness
4.75 mm
Style
ROMU
Application
Contouring, Facing, Plunging, Profiling, Shouldering
Thickness (Decimal)
0.19
Shape
Round
Insert Holding Method
Screw
Insert Length (Decimal)
0.46
Insert Length (Metric)
11.80
Old Material Number
8842369
ANSI Part Number
ROMU1204M0ERGHPR1535
ISO Part Number
ROMU1204M0ER-GH
Rake
Positive
Insert Size
1204
Chipbreaker
M0ER-GH
Cutting Range
Roughing
Inscribed Circle (Decimal)
0.47
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/RAD-8_MRW_W.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Aerospace_Tooling_Solutions_W.pdf
Kyocera ROMU 1204M0ERGH PR1535 Grade PVD Carbide, Indexable Milling Insert
$34.97
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
