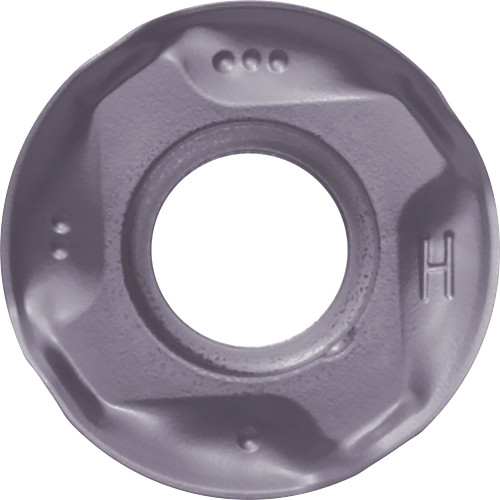

Kyocera ROMU 1204M0ERGH PR1835 Grade PVD Carbide, Indexable Milling Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLU00129
$34.97
Kyocera ROMU 1204M0ERGH PR1835 Grade PVD Carbide, Round, Positive Rake Angle, Right-Hand Milling Insert for Roughing in (M) Austenitic Stainless Steel, (M) Precipitation Hardened Stainless Steel, (S) Titanium Alloy and (P) Carbon/Alloy Steel, (P) Mold Steel, (M) Martensitic Stainless Steel

Specifications

Series
MRW
Unit of Measure
Metric
Cutting Direction
Neutral
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(M) Austenitic Stainless Steel|(M) Precipitation Hardened Stainless Steel|(S) Titanium Alloy
Grade
PR1835
Inscribed Circle (Metric)
12
Thickness
4.75 mm
Style
ROMU
Application
Contouring, Facing, Plunging, Profiling, Shouldering
Thickness (Decimal)
0.19
Shape
Round
Insert Holding Method
Screw
Insert Length (Decimal)
0.46
Insert Length (Metric)
11.80
ANSI Part Number
ROMU1204M0ERGHPR1835
ISO Part Number
ROMU1204M0ER-GH
Rake
Positive
Number of Cutting Edges
8
Insert Size
1204
Chipbreaker
M0ER-GH
Cutting Range
Roughing
Inscribed Circle (Decimal)
0.47
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/RAD-8_MRW_W.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/PR18-Series_Milling_Grades.pdf
