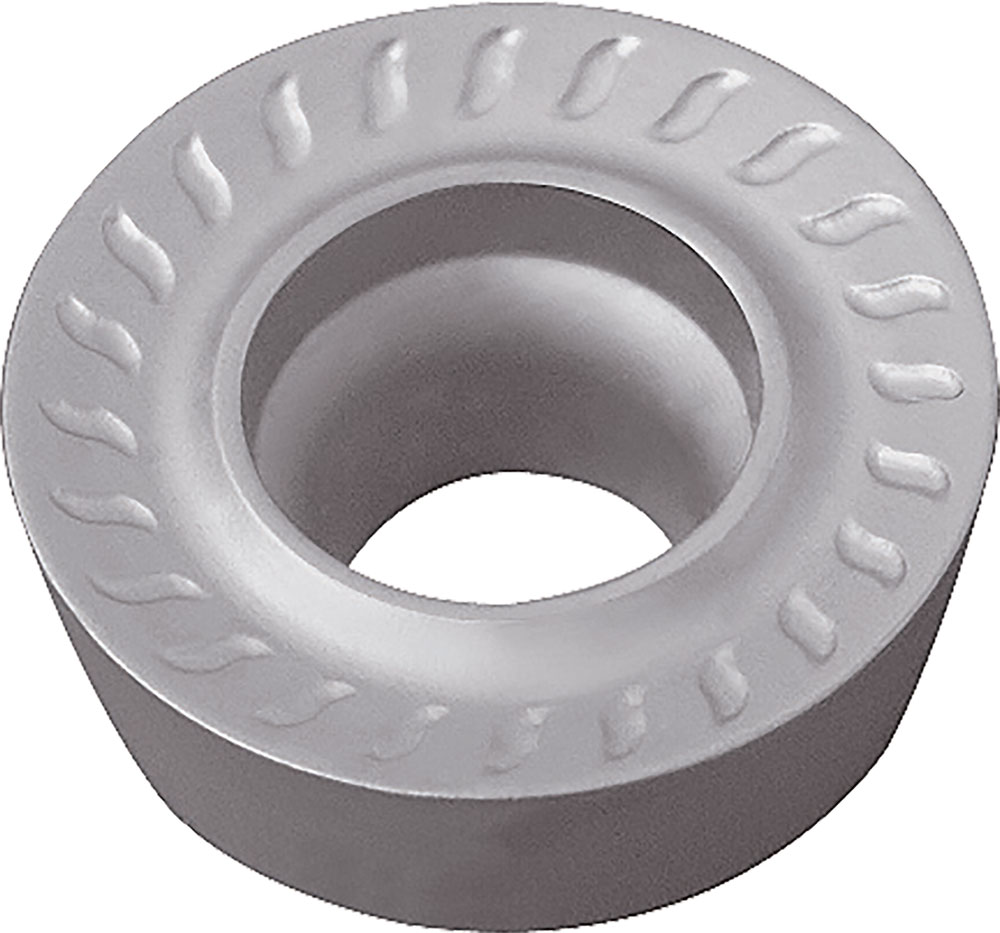

Kyocera RPMT 1606M0H KW10 Grade Uncoated Carbide, Indexable Milling Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TWE04969
$37.39
Kyocera RPMT 1606M0H KW10 Grade Uncoated Carbide, Round, Positive Rake Angle, Milling Insert for Roughing in (N) Non-Ferrous Metals and (K) Gray Cast Iron

Specifications

Series
MRP
Unit of Measure
Metric
Cutting Direction
Neutral
Material
Carbide
Coating/Finish
Uncoated
Primary Workpiece Material
(N) Non-Ferrous Materials
Grade
KW10
Inscribed Circle (Metric)
16
Thickness
6.35 mm
Style
RPMT
Application
Contouring, Facing, Pocketing, Ramping, Shouldering
Thickness (Fractional)
1/4
Shape
Round
Insert Holding Method
Screw
Old Material Number
8813125
ANSI Part Number
RPMT1606M0HKW10
ISO Part Number
RPMT1606M0-H
Rake
Positive
Insert Size
1606
Chipbreaker
M0H
Cutting Range
Roughing
Inscribed Circle (Decimal)
0.63
Pack quantity
10
Kyocera RPMT 1606M0H KW10 Grade Uncoated Carbide, Indexable Milling Insert
$37.39
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
