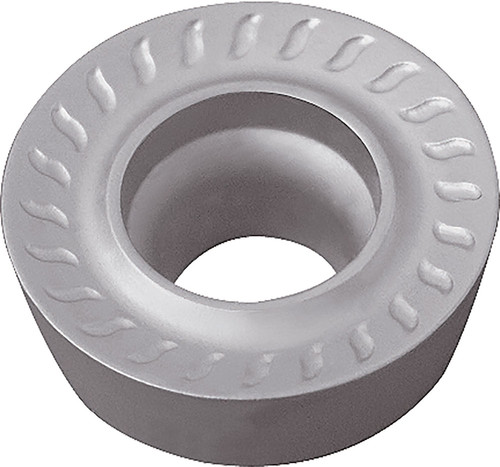

Kyocera RPMT 1606M0H TN100M Grade Uncoated Cermet, Indexable Milling Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TSP00505
$28.04
Kyocera RPMT 1606M0H TN100M Grade Uncoated Cermet, Round, Positive Rake Angle, Milling Insert for Finishing in (P) Carbon/Alloy Steel, (P) Mold Steel and (M) Stainless Steel

Specifications

Series
MRP
Unit of Measure
Metric
Cutting Direction
Neutral
Material
Cermet
Coating/Finish
Uncoated
Primary Workpiece Material
(P) Carbon/Alloy Steel|(P) Mold Steel
Grade
TN100M
Inscribed Circle (Metric)
16
Thickness
6.35 mm
Style
RPMT
Application
Contouring, Facing, Pocketing, Ramping, Shouldering
Thickness (Fractional)
1/4
Shape
Round
Insert Holding Method
Screw
Old Material Number
8807748
ANSI Part Number
RPMT1606M0HTN100M
ISO Part Number
RPMT1606M0-H
Rake
Positive
Insert Size
1606
Chipbreaker
M0H
Cutting Range
Finishing
Inscribed Circle (Decimal)
0.63
Pack quantity
10
Kyocera RPMT 1606M0H TN100M Grade Uncoated Cermet, Indexable Milling Insert
$28.04
