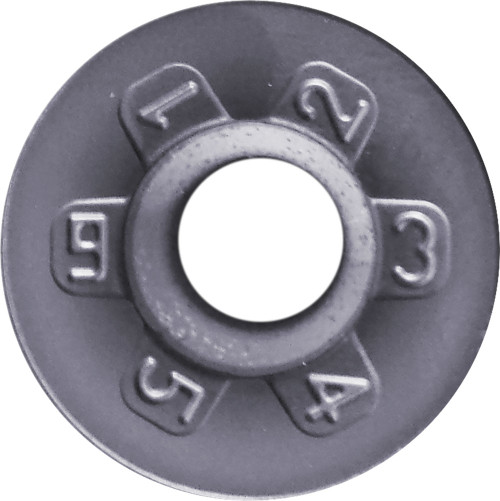

Kyocera RPMW 1204M0TN PR1535 Grade PVD Carbide, Indexable Milling Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLC01630
$21.40
Kyocera RPMW 1204M0TN PR1535 Grade PVD Carbide, Round, Positive Rake Angle, Neutral Milling Insert for Roughing in (M) Austenitic Stainless Steel, (M) Precipitation Hardened Stainless Steel, (S) Titanium Alloy and (P) Free-Cutting Steel, (P) Carbon/Alloy Steel, (P) Mold Steel, (M) Martensitic Stainless Steel, (S) Heat-Resistant Alloy

Specifications

Series
MRX
Unit of Measure
Metric
Cutting Direction
Neutral
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(M) Austenitic Stainless Steel|(M) Precipitation Hardened Stainless Steel|(S) Titanium Alloy
Grade
PR1535
Inscribed Circle (Metric)
12
Thickness
4.76 mm
Style
RPMW
Application
Facing, Plunging, Pocketing, Shouldering
Thickness (Fractional)
3/16
Shape
Round
Insert Holding Method
Screw
Old Material Number
8844212
ANSI Part Number
RPMW1204M0TNPR1535
ISO Part Number
RPMW1204M0TN
Rake
Positive
Insert Size
1204
Chipbreaker
M0TN
Cutting Range
Roughing
Inscribed Circle (Decimal)
0.47
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/RAD-6_MRX_Radius_Milling_Cutter.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Aerospace_Tooling_Solutions_W.pdf
Kyocera RPMW 1204M0TN PR1535 Grade PVD Carbide, Indexable Milling Insert
$21.40
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
