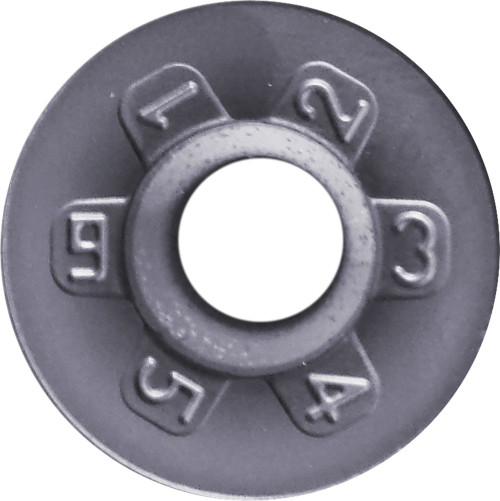

Kyocera RPMW 1605M0TN PR1525 Grade PVD Carbide, Indexable Milling Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLB01635
$30.56
Kyocera RPMW 1605M0TN PR1525 Grade PVD Carbide, Round, Positive Rake Angle, Neutral Milling Insert for Roughing in (P) Free-Cutting Steel, (P) Carbon/Alloy Steel, (P) Mold Steel and (M) Austenitic Stainless Steel

Specifications

Series
MRX
Unit of Measure
Metric
Cutting Direction
Neutral
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(P) Free-Cutting Steel|(P) Carbon/Alloy Steel|(P) Mold Steel
Grade
PR1525
Inscribed Circle (Metric)
16
Thickness
5.56 mm
Style
RPMW
Application
Facing, Plunging, Pocketing, Shouldering
Thickness (Fractional)
7/32
Shape
Round
Insert Holding Method
Screw
Old Material Number
8844213
ANSI Part Number
RPMW1605M0TNPR1525
ISO Part Number
RPMW1605M0TN
Rake
Positive
Insert Size
1605
Chipbreaker
M0TN
Cutting Range
Roughing
Inscribed Circle (Decimal)
0.63
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/RAD-6_MRX_Radius_Milling_Cutter.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Aerospace_Tooling_Solutions_W.pdf
