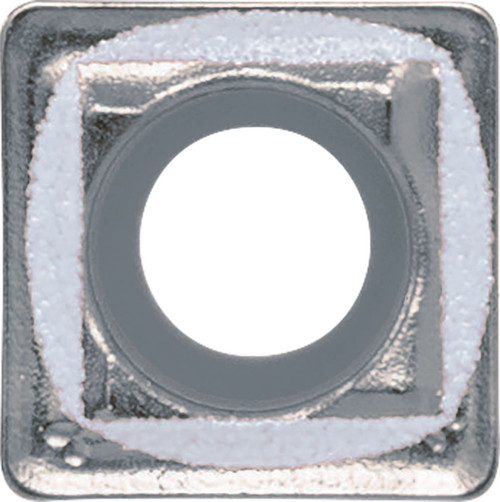

Kyocera Drill Insert SCMT060205XME: PR1225, MEGACOAT, Square, 4 Cutting Edges, 0.50mm Corner Radius, TKB05663

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TKB05663
$25.82

Drill holes in an indexable drill with this PR1225 grade drill insert.

Kyocera Series DRV tools are made for steel and stainless steel.

  • Insert thickness: 2.80mm
  • Insert grade: PR1225
  • Coating/finish: MEGACOAT
  • Material: Carbide
  • Workpiece material: Steel
  • ANSI designation: SCMT060205XMEPR1225
  • ISO designation: SCMT060205-XM-E
  • Insert shape: Square
  • Number of cutting edges: 4
  • Corner radius: 0.50mm

Kyocera part number TKB05663.

Specifications

Series
DRV
Unit of Measure
Metric
Hand Direction
Neutral
Material
Carbide
Coating/Finish
MEGACOAT
Insert Thickness (Metric)
2.80
Machining Operations
Drilling
Corner Radius (Metric)
0.50
IC Size (Metric)
6.40
Insert Grade
PR1225
Workpiece Material
Steel
IC Size (Decimal)
0.2520
Included Angle
90
ANSI Designation
SCMT060205XMEPR1225
Insert Style
SCMT
Insert Thickness (Decimal)
0.1100
Chip Breaker Type
XM-E
Size System
Metric
Insert Shape
Square
Insert Holding Method
Screw
Insert Size
060205
Coating Process
PVD
Rake
Positive
Number of Cutting Edges
4
ISO Designation
SCMT060205-XM-E
Corner Radius (Decimal)
0.0200
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/DRV_Magic_Drill.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/Automotive_Tooling_Solutions.pdf
