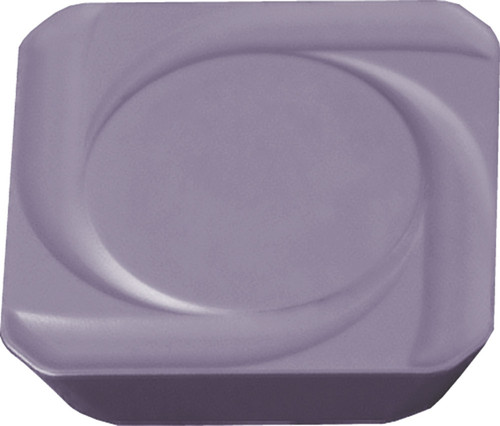

Kyocera SDMR 42AUERH PR1825 Grade PVD Carbide, Indexable Milling Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLT00168
$34.58
Kyocera SDMR 42AUERH PR1825 Grade PVD Carbide, 90 Degree Square, Positive Rake Angle, Right-Hand Milling Insert for Roughing in (P) Carbon/Alloy Steel, (P) Mold Steel and (M) Austenitic Stainless Steel

Specifications

Series
GPM
Unit of Measure
Metric
Cutting Direction
Right
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(P) Carbon/Alloy Steel|(P) Mold Steel
Corner Radius
1 mm
Grade
PR1825
Inscribed Circle (Metric)
12.70
Thickness
3.18 mm
Style
SDMR
Application
Chamfering, Facing, Shouldering
Thickness (Fractional)
1/8
Shape
90 Degree Square
Insert Holding Method
Clamp
ANSI Part Number
SDMR42AUERHPR1825
ISO Part Number
SDMR1203AUER-H
Rake
Positive
Number of Cutting Edges
4
Insert Size
42
Chipbreaker
AUER-H
Cutting Range
Roughing
Corner Radius (Decimal)
0.04
Inscribed Circle (Fractional)
1/2
Insert Included Angle (Degree)
90 degrees
Pack quantity
10
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/PR18-Series_Milling_Grades.pdf
