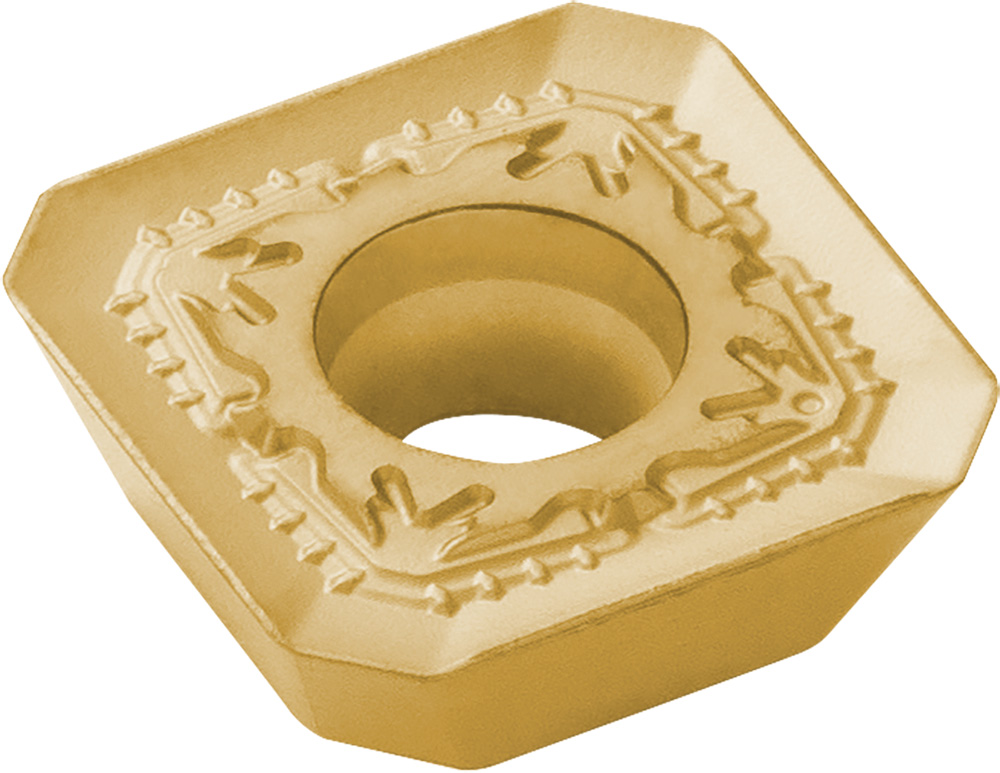

Kyocera SEET 13T3AGSNGL PR1825 Grade PVD Carbide, Indexable Milling Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLT00131
$30.44
Kyocera SEET 13T3AGSNGL PR1825 Grade PVD Carbide, 90 Degree Square, Positive Rake Angle, Neutral Milling Insert for Roughing in (P) Carbon/Alloy Steel, (P) Mold Steel and (M) Austenitic Stainless Steel

Specifications

Series
MFSE
Unit of Measure
Metric
Cutting Direction
Neutral
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(P) Carbon/Alloy Steel|(P) Mold Steel
Corner Radius
1.50 mm
Grade
PR1825
Inscribed Circle (Metric)
13.40
Thickness
3.97 mm
Style
SEET
Application
Chamfering, Facing
Thickness (Fractional)
5/32
Shape
90 Degree Square
Insert Holding Method
Screw
ANSI Part Number
SEET13T3AGSNGLPR1825
ISO Part Number
SEET13T3AGSN-GL
Rake
Positive
Number of Cutting Edges
4
Insert Size
13T3
Chipbreaker
AGSN-GL
Cutting Range
Roughing
Corner Radius (Decimal)
0.06
Insert Included Angle (Degree)
90 degrees
Inscribed Circle (Decimal)
0.53
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/MFSE45.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/PR18-Series_Milling_Grades.pdf
Kyocera SEET 13T3AGSNGL PR1825 Grade PVD Carbide, Indexable Milling Insert
$30.44
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
