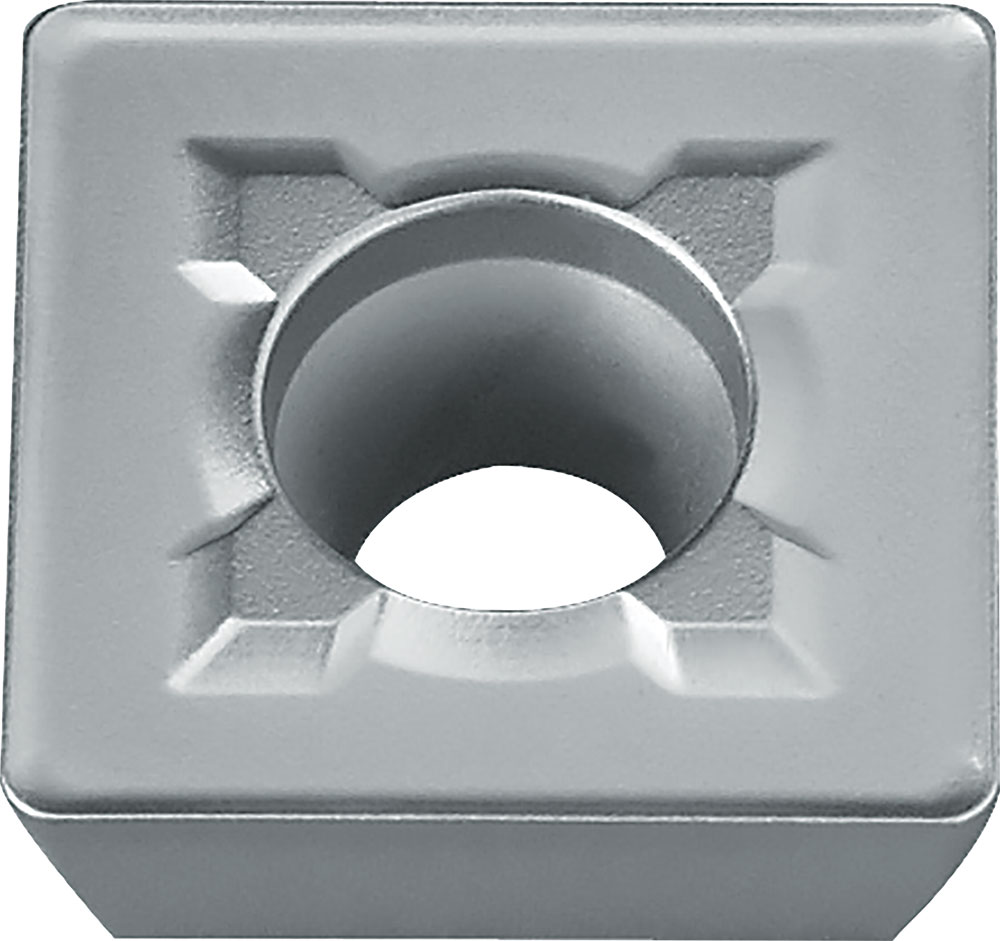

Kyocera SDMT 080308EK KW10 Grade Uncoated Carbide, Indexable Milling Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TWE04921
$28.04
Kyocera SDMT 080308EK KW10 Grade Uncoated Carbide, Square, Positive Rake Angle, Neutral Milling Insert for Roughing in (N) Non-Ferrous Metals and (K) Gray Cast Iron, (K) Nodular Cast Iron

Specifications

Series
METS
Unit of Measure
Metric
Cutting Direction
Neutral
Material
Carbide
Coating/Finish
Uncoated
Primary Workpiece Material
(N) Non-Ferrous Materials
Corner Radius
0.80 mm
Corner Radius (Fractional)
1/32
Grade
KW10
Inscribed Circle (Metric)
8
Thickness
3.18 mm
Style
SDMT
Application
Back Side Milling, T-Slotting
Thickness (Fractional)
1/8
Shape
90 Degree Square
Insert Holding Method
Screw
Old Material Number
8813443
ANSI Part Number
SDMT080308EKKW10
ISO Part Number
SDMT080308E-K
Rake
Positive
Number of Cutting Edges
4
Insert Size
080308
Chipbreaker
E-K
Cutting Range
Roughing
Insert Included Angle (Degree)
90 degrees
Inscribed Circle (Decimal)
0.32
Pack quantity
10
Kyocera SDMT 080308EK KW10 Grade Uncoated Carbide, Indexable Milling Insert
$28.04
