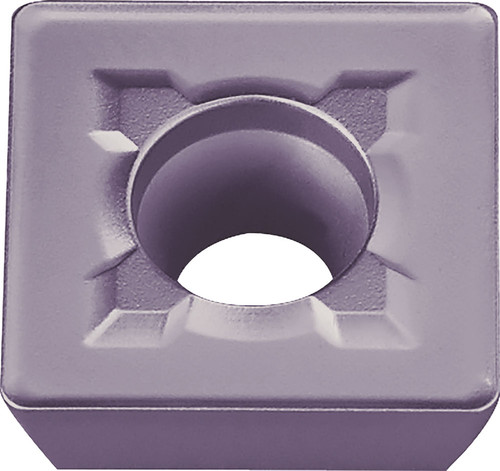

Kyocera SDMT 221EK PR1835 Grade PVD Carbide, Indexable Milling Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLU00066
$34.58
Kyocera SDMT 221EK PR1835 Grade PVD Carbide, 90 Degree Square, Positive Rake Angle, Neutral Milling Insert for Roughing in (M) Austenitic Stainless Steel, (M) Precipitation Hardened Stainless Steel, (S) Titanium Alloy and (P) Carbon/Alloy Steel, (P) Mold Steel, (M) Martensitic Stainless Steel

Specifications

Series
METS
Unit of Measure
Metric
Cutting Direction
Neutral
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(M) Austenitic Stainless Steel|(M) Precipitation Hardened Stainless Steel|(S) Titanium Alloy
Corner Radius
0.40 mm
Corner Radius (Fractional)
1/64
Grade
PR1835
Inscribed Circle (Metric)
6.35
Thickness
3.18 mm
Style
SDMT
Application
Back Side Milling, T-Slotting
Thickness (Fractional)
1/8
Shape
90 Degree Square
Insert Holding Method
Screw
ANSI Part Number
SDMT221EKPR1835
ISO Part Number
SDMT060304E-K
Rake
Positive
Number of Cutting Edges
4
Insert Size
221
Chipbreaker
E-K
Cutting Range
Roughing
Inscribed Circle (Fractional)
1/4
Insert Included Angle (Degree)
90 degrees
Pack quantity
10
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/PR18-Series_Milling_Grades.pdf
