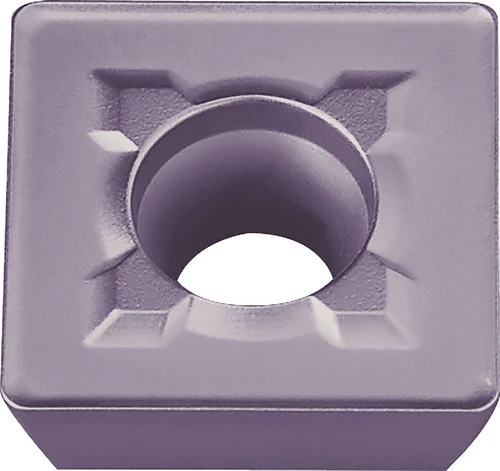

Kyocera Milling Insert SDMT432EK PR1810: TLS00046
SKU: KYP-TLS00046
Kyocera Milling Insert SDMT432EK PR1835, manufacturer part number TLU00068.
Specifications: IC Size: 1/2 in (12.70 mm); Insert Thickness: 3/16 in (4.76 mm); Corner Radius: 1/32 in (0.80 mm); Insert Holding Method: Screw; Rake: Positive; Number of Cutting Edges: 4; Insert Size: 432; Cutting Range: Roughing; Hand Direction: Neutral; Insert Style: SDMT; ANSI Designation: SDMT432EKPR1835; Chip Breaker Type: E-K; ISO Designation: SDMT120408E-K; Included Angle: 90 degrees; Machining Operations: Back Side Milling, T-Slotting; Insert Grade: PR1835; Workpiece Material: Stainless Steel, High-Temp Alloy, Steel; Insert Shape: Square; Coating Process: PVD.
Material: Carbide. Coating/Finish: MEGACOAT NANO EX. Series: METS. Unit of measure: Inch.
