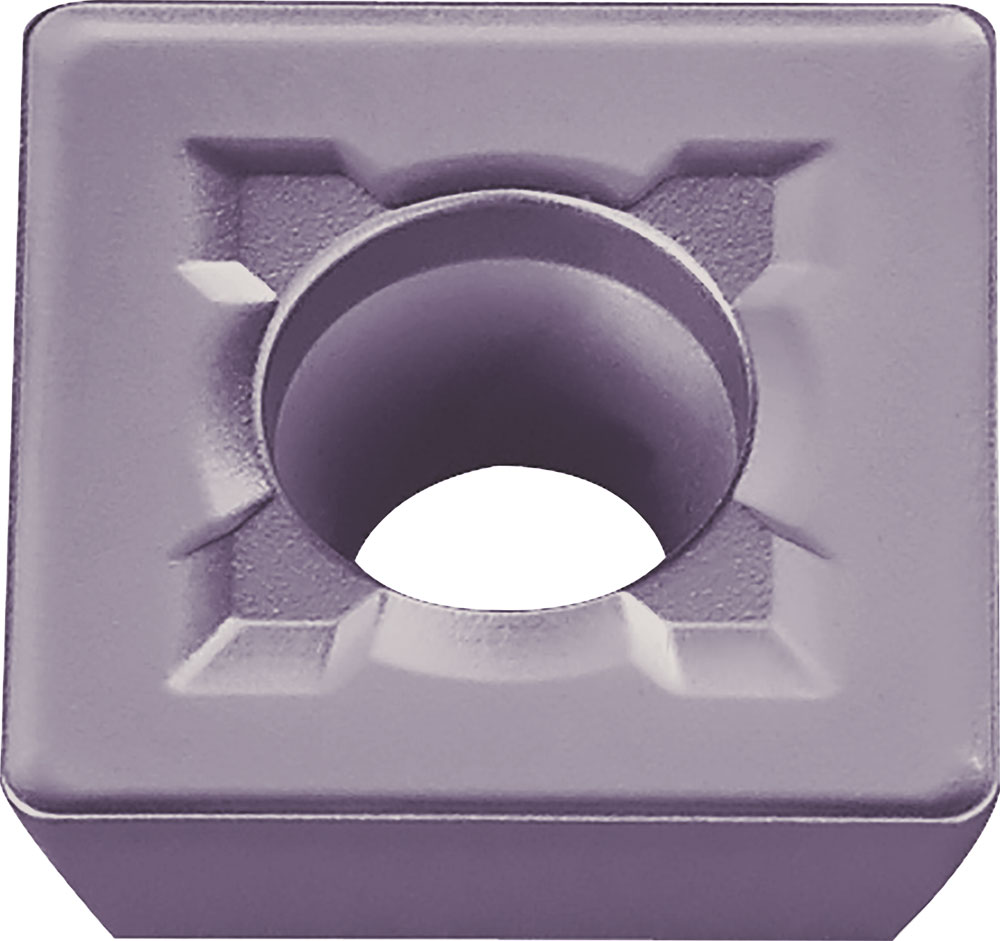

Kyocera SDMT 432EK PR1810 Grade PVD Carbide, Indexable Milling Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLS00046
$34.58
Kyocera SDMT 432EK PR1810 Grade PVD Carbide, 90 Degree Square, Positive Rake Angle, Neutral Milling Insert for Roughing in (K) Gray Cast Iron, (K) Nodular Cast Iron

Specifications

Series
METS
Unit of Measure
Metric
Cutting Direction
Neutral
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(K) Gray Cast Iron|(K) Nodular Cast Iron
Corner Radius
0.80 mm
Corner Radius (Fractional)
1/32
Grade
PR1810
Inscribed Circle (Metric)
12.70
Thickness
4.76 mm
Style
SDMT
Application
Back Side Milling, T-Slotting
Thickness (Fractional)
3/16
Shape
90 Degree Square
Insert Holding Method
Screw
ANSI Part Number
SDMT432EKPR1810
ISO Part Number
SDMT120408E-K
Rake
Positive
Number of Cutting Edges
4
Insert Size
432
Chipbreaker
E-K
Cutting Range
Roughing
Inscribed Circle (Fractional)
1/2
Insert Included Angle (Degree)
90 degrees
Pack quantity
10
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/PR18-Series_Milling_Grades.pdf
