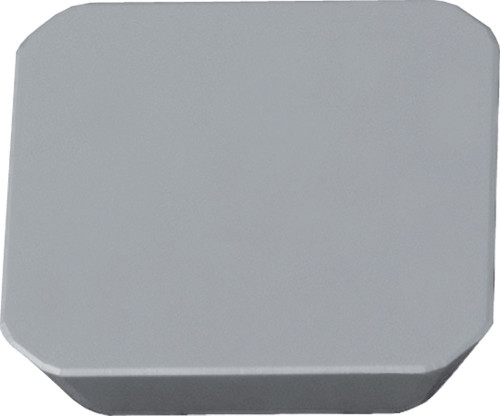

Kyocera Milling Insert SEEN42AFTN TN100M: TSP00605

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TSP00605
$26.18

Kyocera Milling Insert SEEN42AFTN TN100M, manufacturer part number TSP00605.

Specifications: IC Size: 1/2 in (12.70 mm); Insert Thickness: 1/8 in (3.18 mm); Insert Holding Method: Clamp; Old Material Number: 8813467; Rake: Positive; Number of Cutting Edges: 4; Insert Size: 42; Cutting Range: Finishing; Hand Direction: Neutral; Insert Style: SEEN; ANSI Designation: SEEN42AFTNTN100M; Chip Breaker Type: AFTN; ISO Designation: SEEN1203AFTN; Included Angle: 90 degrees; Machining Operations: Chamfering, Facing; Insert Grade: TN100M; Workpiece Material: Steel; Insert Shape: Square.

Material: Cermet. Coating/Finish: Uncoated. Series: MSE. Unit of measure: Inch.

Specifications

Series
MSE
Unit of Measure
Inch
Hand Direction
Neutral
Material
Cermet
Coating/Finish
Uncoated
IC Size (Fractional)
1/2
IC Size (Metric)
12.70
Included Angle
90
ANSI Designation
SEEN42AFTNTN100M
Insert Style
SEEN
Insert Thickness (Fractional)
1/8
Insert Thickness (Metric)
3.18
Insert Shape
Square
Insert Holding Method
Clamp
Old Material Number
8813467
Machining Operations
Chamfering, Facing
Insert Grade
TN100M
Rake
Positive
Number of Cutting Edges
4
Insert Size
42
Chip Breaker Type
AFTN
Cutting Range
Finishing
Workpiece Material
Steel
ISO Designation
SEEN1203AFTN
Pack quantity
10
Kyocera Milling Insert SEEN42AFTN TN100M: TSP00605
$26.18
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
