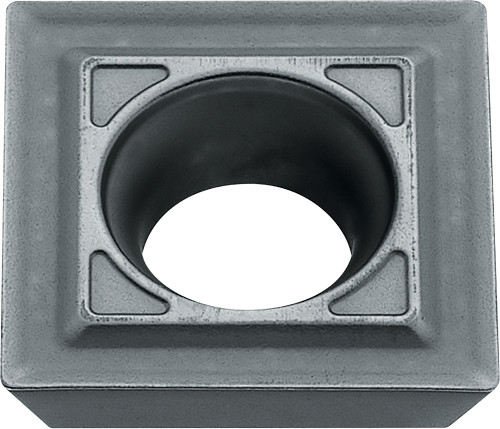

Kyocera SDMT 3181C TN100M Grade Uncoated Cermet, Indexable Milling Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TSP00543
$21.74
Kyocera SDMT 3181C TN100M Grade Uncoated Cermet, Square, Positive Rake Angle, Neutral Milling Insert for Finishing in (P) Free-Cutting Steel, (P) Carbon/Alloy Steel, (P) Mold Steel

Specifications

Series
MCSE
Unit of Measure
Metric
Cutting Direction
Neutral
Material
Cermet
Coating/Finish
Uncoated
Primary Workpiece Material
(P) Free-Cutting Steel|(P) Carbon/Alloy Steel|(P) Mold Steel
Corner Radius
0.40 mm
Corner Radius (Fractional)
1/64
Grade
TN100M
Inscribed Circle (Metric)
9.53
Thickness
2.78 mm
Style
SDMT
Application
Back Chamfering, Chamfering, Countersinking, V-Shape Slotting
Thickness (Decimal)
0.11
Shape
90 Degree Square
Insert Holding Method
Screw
Old Material Number
8813448
ANSI Part Number
SDMT3181CTN100M
ISO Part Number
SDMT09T204C
Rake
Positive
Number of Cutting Edges
4
Insert Size
3181
Chipbreaker
C
Cutting Range
Finishing
Inscribed Circle (Fractional)
3/8
Insert Included Angle (Degree)
90 degrees
Pack quantity
10
Kyocera SDMT 3181C TN100M Grade Uncoated Cermet, Indexable Milling Insert
$21.74
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
