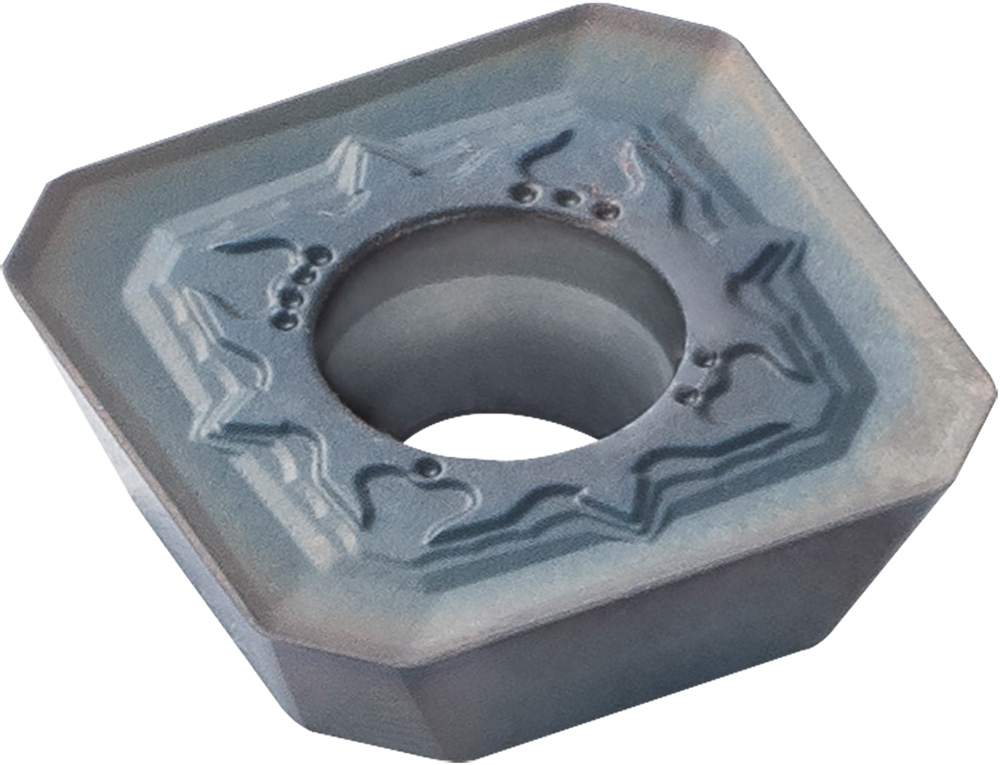

Kyocera SEET 13T3AGSNGL PR1535 Grade PVD Carbide, Indexable Milling Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLC40137
$30.44
Kyocera SEET 13T3AGSNGL PR1535 Grade PVD Carbide, Square, Positive Rake Angle Right-Hand Milling Insert for Finishing (P) Steel, (M) Stainless Steel, (K) Cast Iron, and (S) Heat-Resistant Alloy Materials

Specifications

Series
MFSE
Unit of Measure
Metric
Cutting Direction
Neutral
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(P) Carbon/Alloy Steel|(M) Austenitic Stainless Steel|(M) Martensitic Stainless Steel
Corner Radius
1.50 mm
Grade
PR1535
Inscribed Circle (Metric)
13.40
Thickness
3.97 mm
Style
SEET
Application
Chamfering, Facing
Thickness (Fractional)
5/32
Shape
90 Degree Square
Insert Holding Method
Screw
Old Material Number
8867060
ANSI Part Number
SEET13T3AGSNGLPR1535
ISO Part Number
SEET13T3AGSN-GL
Rake
Positive
Number of Cutting Edges
4
Insert Size
13T3
Chipbreaker
AGSN-GL
Cutting Range
Roughing
Corner Radius (Decimal)
0.06
Insert Included Angle (Degree)
90 degrees
Inscribed Circle (Decimal)
0.53
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/MFSE45.pdf
