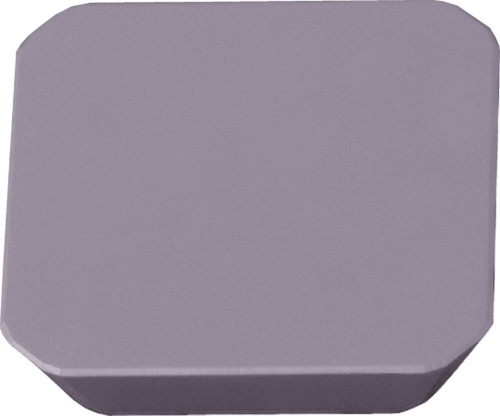

Kyocera SEKN 53AFTN PR1225 Grade PVD Carbide, Indexable Milling Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TKB05230
$47.09
Kyocera SEKN 53AFTN PR1225 Grade PVD Carbide, Square, Positive Rake Angle, Neutral Milling Insert for Roughing in (P) Free-Cutting Steel, (P) Carbon/Alloy Steel, (P) Mold Steel, (M) Stainless Steel, (S) Heat-Resistant Alloy

Specifications

Series
GPM
Unit of Measure
Metric
Cutting Direction
Neutral
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(P) Free-Cutting Steel|(P) Carbon/Alloy Steel|(P) Mold Steel|(M) Stainless Steel|(S) Heat-Resistant Alloy
Grade
PR1225
Inscribed Circle (Metric)
15.88
Thickness
4.76 mm
Style
SEKN
Application
Chamfering, Facing, Shouldering
Thickness (Fractional)
3/16
Shape
90 Degree Square
Insert Holding Method
Clamp
Old Material Number
8833897
ANSI Part Number
SEKN53AFTNPR1225
ISO Part Number
SEKN1504AFTN
Rake
Positive
Number of Cutting Edges
4
Insert Size
53
Chipbreaker
AFTN
Cutting Range
Roughing
Inscribed Circle (Fractional)
5/8
Insert Included Angle (Degree)
90 degrees
Pack quantity
10
Kyocera SEKN 53AFTN PR1225 Grade PVD Carbide, Indexable Milling Insert
$47.09
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
