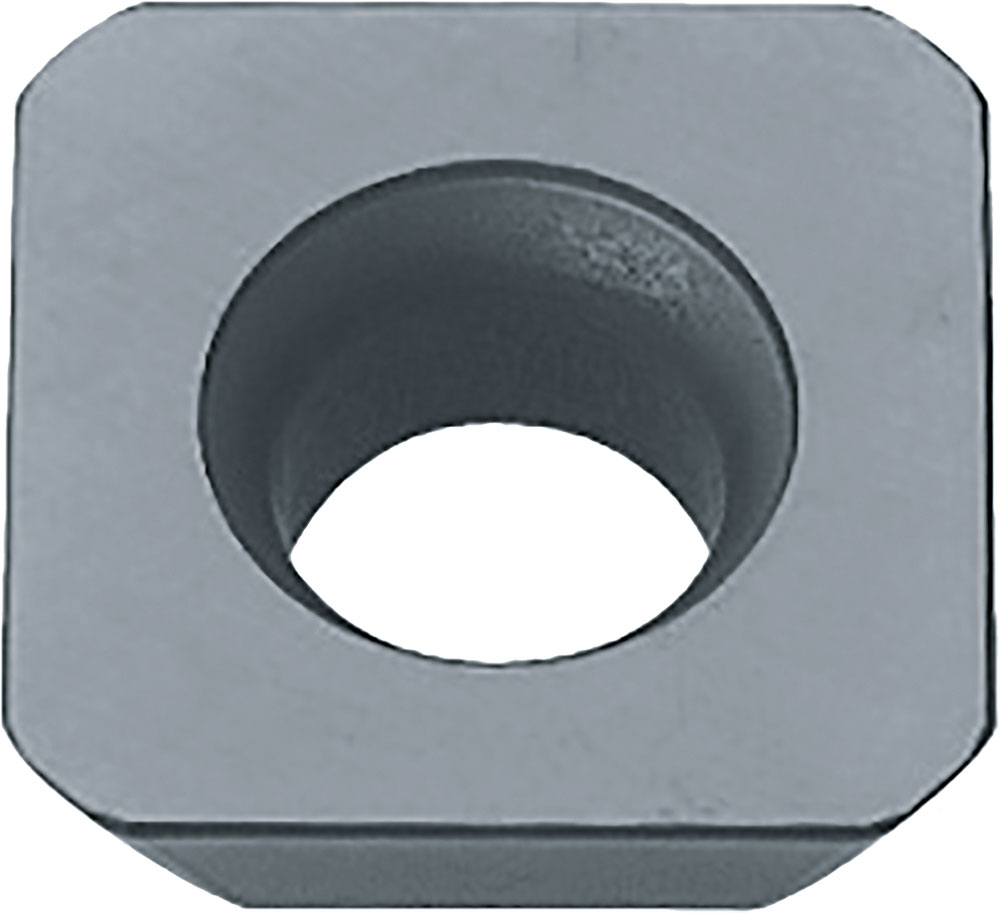

Kyocera SEKW 421TN TN100M Grade Uncoated Cermet, Indexable Milling Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TSP00630
$28.04
Kyocera SEKW 421TN TN100M Grade Uncoated Cermet, Square, Positive Rake Angle, Neutral Milling Insert for Finishing in (P) Free-Cutting Steel, (P) Carbon/Alloy Steel, (P) Mold Steel

Specifications

Series
MCSE
Unit of Measure
Metric
Cutting Direction
Neutral
Material
Cermet
Coating/Finish
Uncoated
Primary Workpiece Material
(P) Free-Cutting Steel|(P) Carbon/Alloy Steel|(P) Mold Steel
Corner Radius
0.40 mm
Corner Radius (Fractional)
1/64
Grade
TN100M
Inscribed Circle (Metric)
12.70
Thickness
3.18 mm
Style
SEKW
Application
Back Chamfering, Chamfering, Countersinking, V-Shape Slotting
Thickness (Fractional)
1/8
Shape
90 Degree Square
Insert Holding Method
Screw
Old Material Number
8813476
ANSI Part Number
SEKW421TNTN100M
ISO Part Number
SEKW120304TN
Rake
Positive
Number of Cutting Edges
4
Insert Size
421
Chipbreaker
TN
Cutting Range
Finishing
Inscribed Circle (Fractional)
1/2
Insert Included Angle (Degree)
90 degrees
Pack quantity
10
Kyocera SEKW 421TN TN100M Grade Uncoated Cermet, Indexable Milling Insert
$28.04
