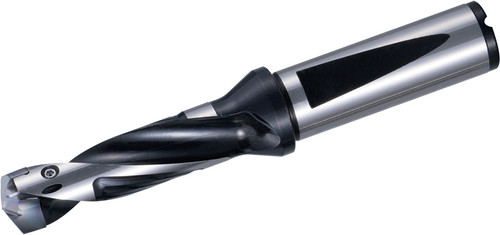

Kyocera Replaceable Tip Drill SF0750DRA150M3, manufacturer part number THD11198.
Specifications: Cutting Diameter: 0.5906 - 0.6295 in (15.00 - 15.99 mm); Overall Length: 4.7642 in (121.01 mm); Number of Flutes: 2; Shank Type: Flange Shank; Insert Holding Method: Screw; Old Material Number: 8608173; Usable Length: 1.8902 in (48.01 mm); Contact Surface Diameter Machine Side: 0.9839 in (24.99 mm); Cutting Diameter Minimum: 0.5906 in (15.00 mm); Cutting Diameter Maximum: 0.6295 in (15.99 mm); Connection Diameter: 0.7500 in (19.05 mm); Number of Inserts: 1; Coolant Option: Internal Coolant; Hand Direction: Right; Insert Style: SF…DRA; ANSI Designation: SF0750DRA150M3; ISO Designation: SF0750-DRA150M-3; Machining Operations: Drilling; LxD Ratio: 3xD.
Material: Steel. Series: DRA. Unit of measure: Inch.
