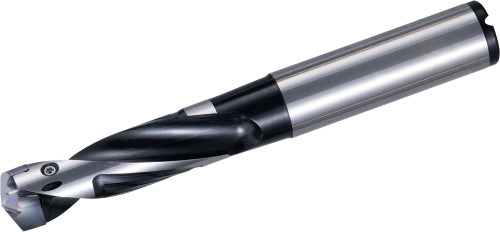

Kyocera Replaceable Tip Drill SS0625DRA150M3, manufacturer part number THD11348.
Specifications: Cutting Diameter: 0.5906 - 0.6295 in (15.00 - 15.99 mm); Overall Length: 4.6850 in (119.00 mm); Number of Flutes: 2; Insert Holding Method: Screw; Old Material Number: 8607163; Usable Length: 1.8902 in (48.01 mm); Cutting Diameter Minimum: 0.5906 in (15.00 mm); Cutting Diameter Maximum: 0.6295 in (15.99 mm); Connection Diameter: 0.6252 in (15.88 mm); Number of Inserts: 1; Coolant Option: Internal Coolant; Hand Direction: Right; Insert Style: SS…DRA; ANSI Designation: SS0625DRA150M3; ISO Designation: SS0625-DRA150M-3; Machining Operations: Drilling; LxD Ratio: 3xD; Shank Type: Straight.
Material: Steel. Series: DRA. Unit of measure: Inch.
