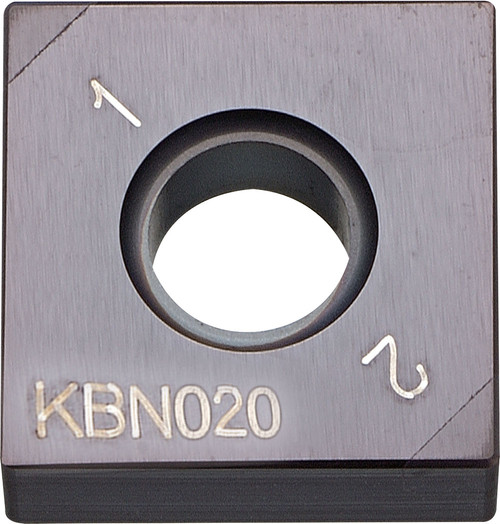

Kyocera Turning Insert SNGA433S00730MET KBN020: TFC00100

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TFC00100
$104.73

Kyocera ISOI turning insert for hardened steel, 1/2 in (12.70 mm) IC, square shape, negative rake, 2 cutting edges, finishing-medium cutting range, screw or clamp insert holding, neutral hand. CBN, MEGACOAT TOUGH (PVD) coating. Manufacturer part number TFC00100.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
CBN
Coating/Finish
MEGACOAT TOUGH
Insert Thickness (Fractional)
3/16
Corner Radius (Fractional)
3/64
Included Angle
90
ANSI Designation
SNGA433S00730METKBN020
Insert Style
SNGA
Insert Thickness (Metric)
4.76
Insert Shape
Square
Insert Holding Method
Screw or Clamp
Insert Size
433
Machining Operations
Boring, Chamfering, External Turning, Facing
Insert Grade
KBN020
Rake
Negative
IC Size (Metric)
12.70
Corner Radius (Metric)
1.20
Number of Cutting Edges
2
Workpiece Material
Hardened Steel
Cutting Range
Finishing-Medium
Usage Classification
Continuous to Light Interruption
IC Size (Fractional)
1/2
Coating Process
PVD
ISO Designation
SNGA120412S01730MET
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/KBN020_Coated_CBN_for_Hardened_Material.pdf
