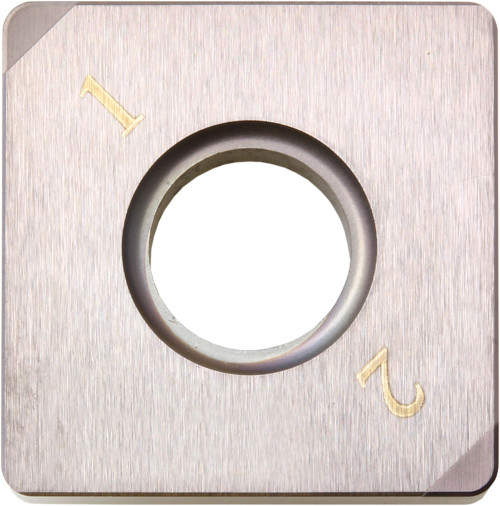

Kyocera Turning Insert SNGA433S00730MET KBN25M: TBZ03662

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TBZ03662
$99.73

Kyocera Turning Insert SNGA433S00730MET KBN25M, manufacturer part number TBZ03662.

Specifications: IC Size: 1/2 in (12.70 mm); Insert Thickness: 3/16 in (4.76 mm); Corner Radius: 3/64 in (1.20 mm); Insert Holding Method: Screw or Clamp; Old Material Number: 8824531; Rake: Negative; Number of Cutting Edges: 2; Cutting Range: Medium; Usage Classification: Continuous to Light Interruption; Insert Size: 433; Hand Direction: Neutral; Insert Style: SNGA; ANSI Designation: SNGA433S00730METKBN25M; ISO Designation: SNGA120412S01730MET; Included Angle: 90 degrees; Machining Operations: Boring, Chamfering, External Turning, Facing; Insert Grade: KBN25M; Workpiece Material: Hardened Steel; Insert Shape: Square; Coating Process: PVD.

Material: CBN. Coating/Finish: MEGACOAT. Series: ISOI. Unit of measure: Inch.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
CBN
Coating/Finish
MEGACOAT
Insert Thickness (Fractional)
3/16
Corner Radius (Fractional)
3/64
Included Angle
90
ANSI Designation
SNGA433S00730METKBN25M
Insert Style
SNGA
Insert Thickness (Metric)
4.76
Insert Shape
Square
Insert Holding Method
Screw or Clamp
Insert Size
433
Old Material Number
8824531
Machining Operations
Boring, Chamfering, External Turning, Facing
Insert Grade
KBN25M
Rake
Negative
IC Size (Metric)
12.70
Corner Radius (Metric)
1.20
Number of Cutting Edges
2
Workpiece Material
Hardened Steel
Cutting Range
Medium
Usage Classification
Continuous to Light Interruption
IC Size (Fractional)
1/2
Coating Process
PVD
ISO Designation
SNGA120412S01730MET
