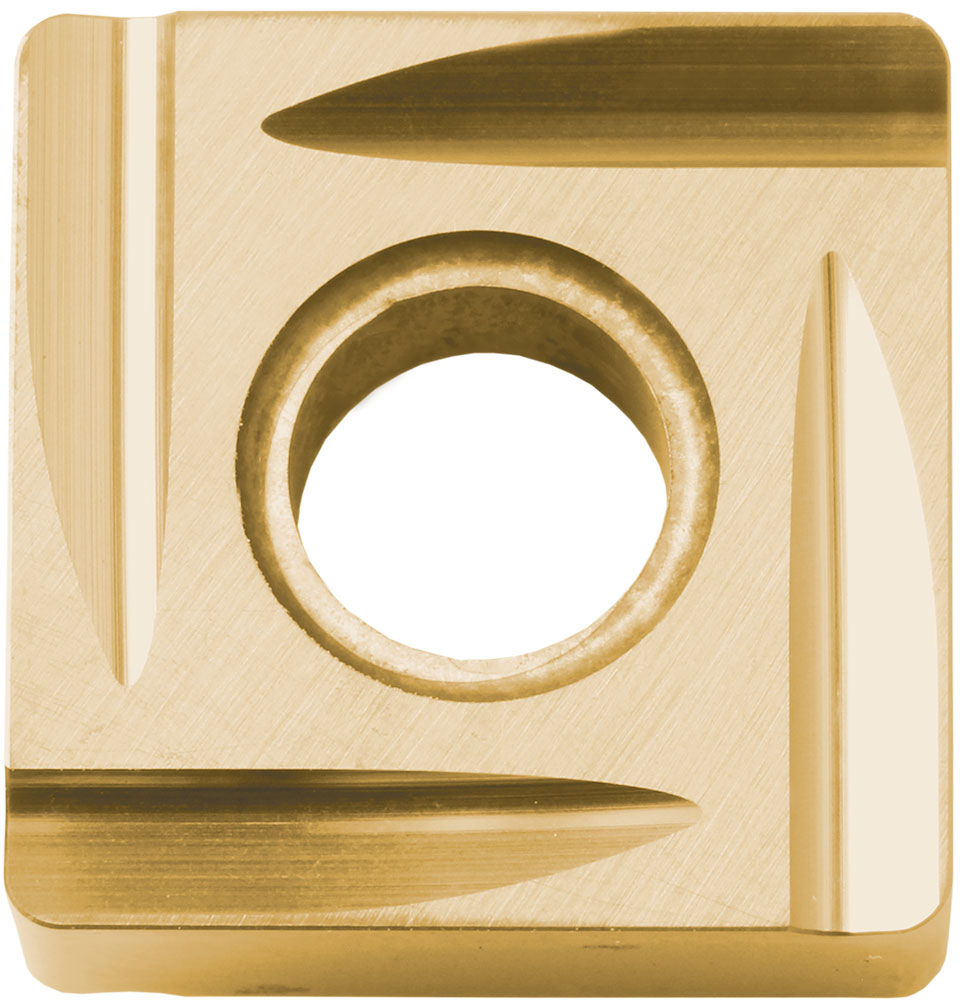

Kyocera SNGG 321LB PV710 Grade PVD Cermet, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLF05280
$27.59
Kyocera SNGG 321LB PV710 Grade PVD Cermet, 0 Degree, Square, Negative Rake Angle, Left-Hand Turning Insert for Continuous and Finishing-Medium in (P) Carbon/Alloy Steel

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Left-Hand
Material
Cermet
Coating/Finish
PVD
Primary Workpiece Material
(P) Carbon/Alloy Steel
Corner Radius
1/64 Inch
Included Angle
90 degrees
Thickness
1/8 Inch
Style
SNGG
Application
Boring, Chamfering, External Turning, Facing
Shape
90 Degree Square
Insert Holding Method
Screw or Clamp
Size
321
Old Material Number
8847565
ANSI Part Number
SNGG321LBPV710
ISO Part Number
SNGG090304L-B
Rake
Negative
Material Group / Grade
PV710
Corner Radius (Metric)
0.40
Number of Cutting Edges
8
Thickness (Metric)
3.18
Chipbreaker
B
Cutting Range
Finishing-Medium
Usage Classification
Continuous
Insert Included Angle
90 degrees
Inscribed Circle (Metric)
9.53
Inscribed Circle
3/8 Inch
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/Hybrid_Cermet.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Aerospace_Tooling_Solutions_W.pdf
