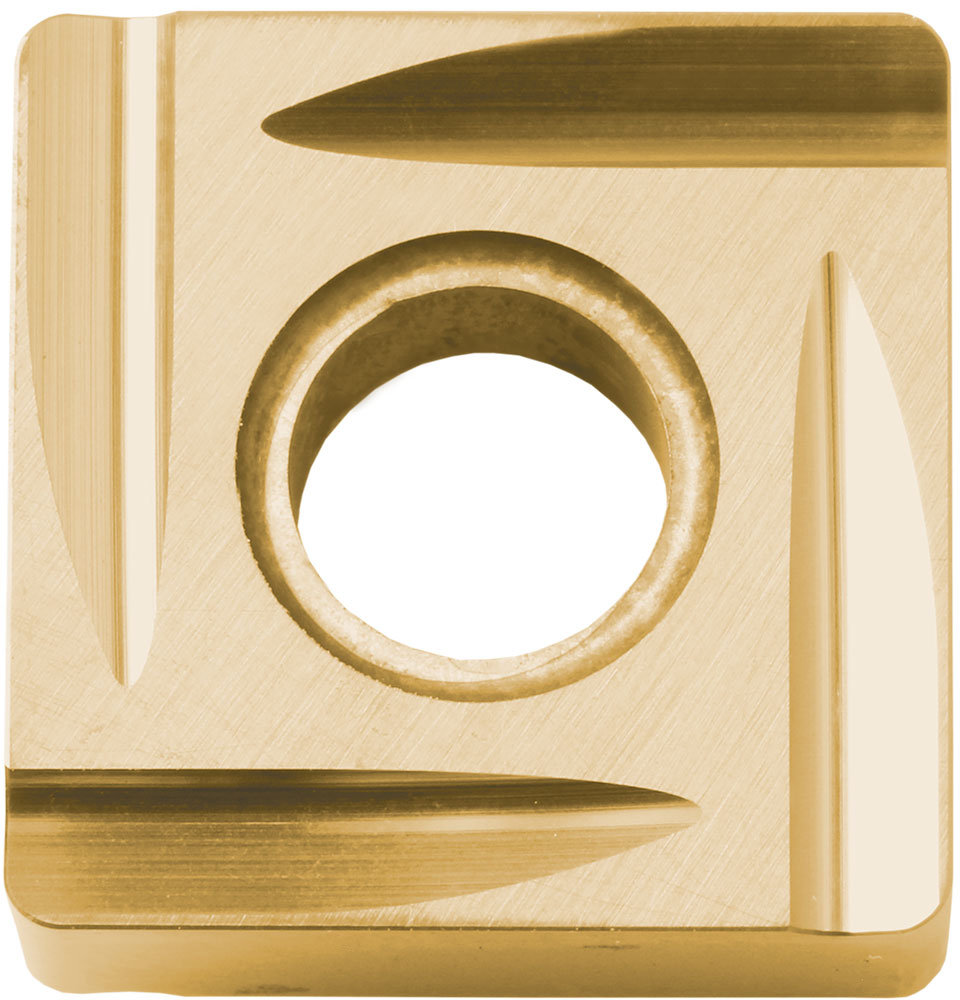

Kyocera SNGG 431L25R PV720 Grade PVD Cermet, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLD05276
$41.05
Kyocera SNGG 431L25R PV720 Grade PVD Cermet, 0 Degree, Square, Negative Rake Angle, Right-Hand Turning Insert for Light Interruption and Medium-Roughing in (P) Carbon/Alloy Steel

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Right-Hand
Material
Cermet
Coating/Finish
PVD
Primary Workpiece Material
(P) Carbon/Alloy Steel
Corner Radius
1/64 Inch
Included Angle
90 degrees
Thickness
3/16 Inch
Style
SNGG
Application
Boring, Chamfering, External Turning, Facing
Shape
90 Degree Square
Insert Holding Method
Screw or Clamp
Size
431
Old Material Number
8862634
ANSI Part Number
SNGG431L25RPV720
ISO Part Number
SNGG120404L-25R
Rake
Negative
Material Group / Grade
PV720
Corner Radius (Metric)
0.40
Number of Cutting Edges
8
Thickness (Metric)
4.76
Chipbreaker
25R
Cutting Range
Medium-Roughing
Usage Classification
Light Interruption
Insert Included Angle
90 degrees
Inscribed Circle (Metric)
12.70
Inscribed Circle
1/2 Inch
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/Hybrid_Cermet.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Aerospace_Tooling_Solutions_W.pdf
