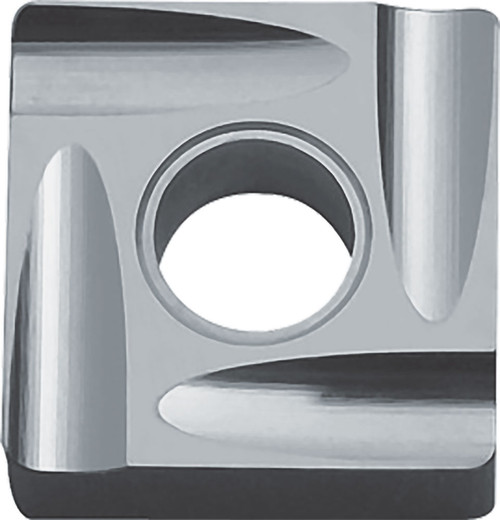

Kyocera Turning Insert SNGG431L25R TN610: TSS05276

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TSS05276
$32.51

Kyocera Turning Insert SNGG431L25R TN610, manufacturer part number TSS05276.

Specifications: IC Size: 1/2 in (12.70 mm); Insert Thickness: 3/16 in (4.76 mm); Corner Radius: 1/64 in (0.40 mm); Insert Holding Method: Screw or Clamp; Old Material Number: 8847783; Rake: Negative; Number of Cutting Edges: 8; Cutting Range: Medium-Roughing; Usage Classification: Continuous; Insert Size: 431; Hand Direction: Right; Insert Style: SNGG; ANSI Designation: SNGG431L25RTN610; Chip Breaker Type: 25R; ISO Designation: SNGG120404L-25R; Included Angle: 90 degrees; Machining Operations: Boring, Chamfering, External Turning, Facing; Insert Grade: TN610; Workpiece Material: Steel; Insert Shape: Square.

Material: Cermet. Coating/Finish: Uncoated. Series: ISOI. Unit of measure: Inch.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Right
Material
Cermet
Coating/Finish
Uncoated
Insert Thickness (Fractional)
3/16
Corner Radius (Fractional)
1/64
Included Angle
90
ANSI Designation
SNGG431L25RTN610
Insert Style
SNGG
Insert Thickness (Metric)
4.76
Insert Shape
Square
Insert Holding Method
Screw or Clamp
Insert Size
431
Old Material Number
8847783
Machining Operations
Boring, Chamfering, External Turning, Facing
Insert Grade
TN610
Rake
Negative
IC Size (Metric)
12.70
Corner Radius (Metric)
0.40
Number of Cutting Edges
8
Workpiece Material
Steel
ISO Designation
SNGG120404L-25R
Cutting Range
Medium-Roughing
Usage Classification
Continuous
IC Size (Fractional)
1/2
Chip Breaker Type
25R
Pack quantity
10
