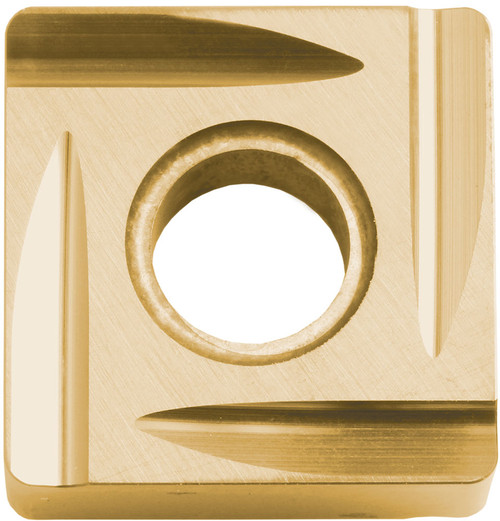

Kyocera Turning Insert SNGG432LC PV720: TLD05290

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLD05290
$41.05

Kyocera ISOI turning insert for steel, 1/2 in (12.70 mm) IC, square shape, negative rake, 8 cutting edges, medium-roughing cutting range, screw or clamp insert holding, left hand. Cermet, TiCN (PVD) coating. Manufacturer part number TLD05290.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Left
Material
Cermet
Coating/Finish
TiCN
Insert Thickness (Fractional)
3/16
Corner Radius (Fractional)
1/32
Included Angle
90
ANSI Designation
SNGG432LCPV720
Insert Style
SNGG
Insert Thickness (Metric)
4.76
Insert Shape
Square
Insert Holding Method
Screw or Clamp
Insert Size
432
Machining Operations
Boring, Chamfering, External Turning, Facing
Insert Grade
PV720
Rake
Negative
IC Size (Metric)
12.70
Corner Radius (Metric)
0.80
Number of Cutting Edges
8
Workpiece Material
Steel
ISO Designation
SNGG120408L-C
Cutting Range
Medium-Roughing
Usage Classification
Continuous to Light Interruption
IC Size (Fractional)
1/2
Coating Process
PVD
Chip Breaker Type
C
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/Hybrid_Cermet.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Aerospace_Tooling_Solutions_W.pdf
Kyocera Turning Insert SNGG432LC PV720: TLD05290
$41.05
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
