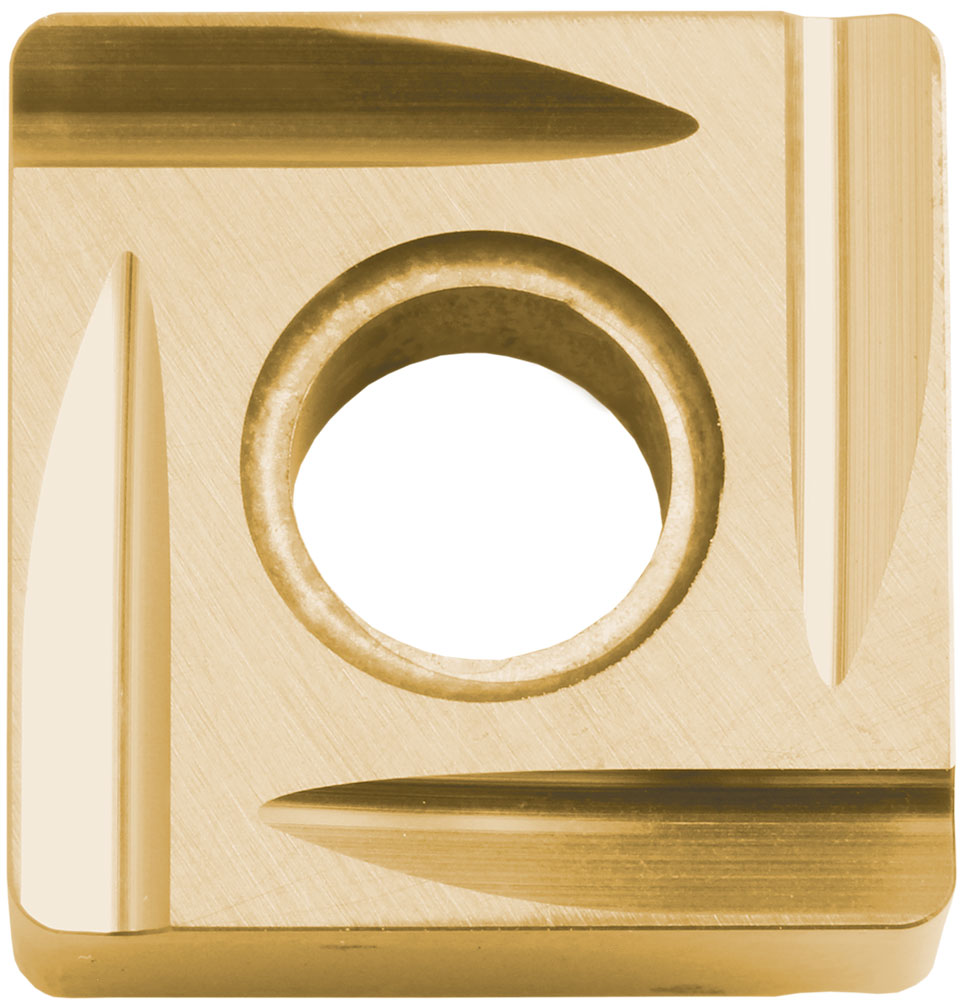

Kyocera Turning Insert SNGG432LC TN620: TSR05290

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TSR05290
$32.51

Kyocera Turning Insert SNGG432LC TN620, manufacturer part number TSR05290.

Specifications: IC Size: 1/2 in (12.70 mm); Insert Thickness: 3/16 in (4.76 mm); Corner Radius: 1/32 in (0.80 mm); Insert Holding Method: Screw or Clamp; Old Material Number: 8862645; Rake: Negative; Number of Cutting Edges: 8; Cutting Range: Medium-Roughing; Usage Classification: Continuous to Light Interruption; Insert Size: 432; Hand Direction: Left; Insert Style: SNGG; ANSI Designation: SNGG432LCTN620; Chip Breaker Type: C; ISO Designation: SNGG120408L-C; Included Angle: 90 degrees; Machining Operations: Boring, Chamfering, External Turning, Facing; Insert Grade: TN620; Workpiece Material: Steel; Insert Shape: Square.

Material: Cermet. Coating/Finish: Uncoated. Series: ISOI. Unit of measure: Inch.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Left
Material
Cermet
Coating/Finish
Uncoated
Insert Thickness (Fractional)
3/16
Corner Radius (Fractional)
1/32
Included Angle
90
ANSI Designation
SNGG432LCTN620
Insert Style
SNGG
Insert Thickness (Metric)
4.76
Insert Shape
Square
Insert Holding Method
Screw or Clamp
Insert Size
432
Old Material Number
8862645
Machining Operations
Boring, Chamfering, External Turning, Facing
Insert Grade
TN620
Rake
Negative
IC Size (Metric)
12.70
Corner Radius (Metric)
0.80
Number of Cutting Edges
8
Workpiece Material
Steel
ISO Designation
SNGG120408L-C
Cutting Range
Medium-Roughing
Usage Classification
Continuous to Light Interruption
IC Size (Fractional)
1/2
Chip Breaker Type
C
Pack quantity
10
