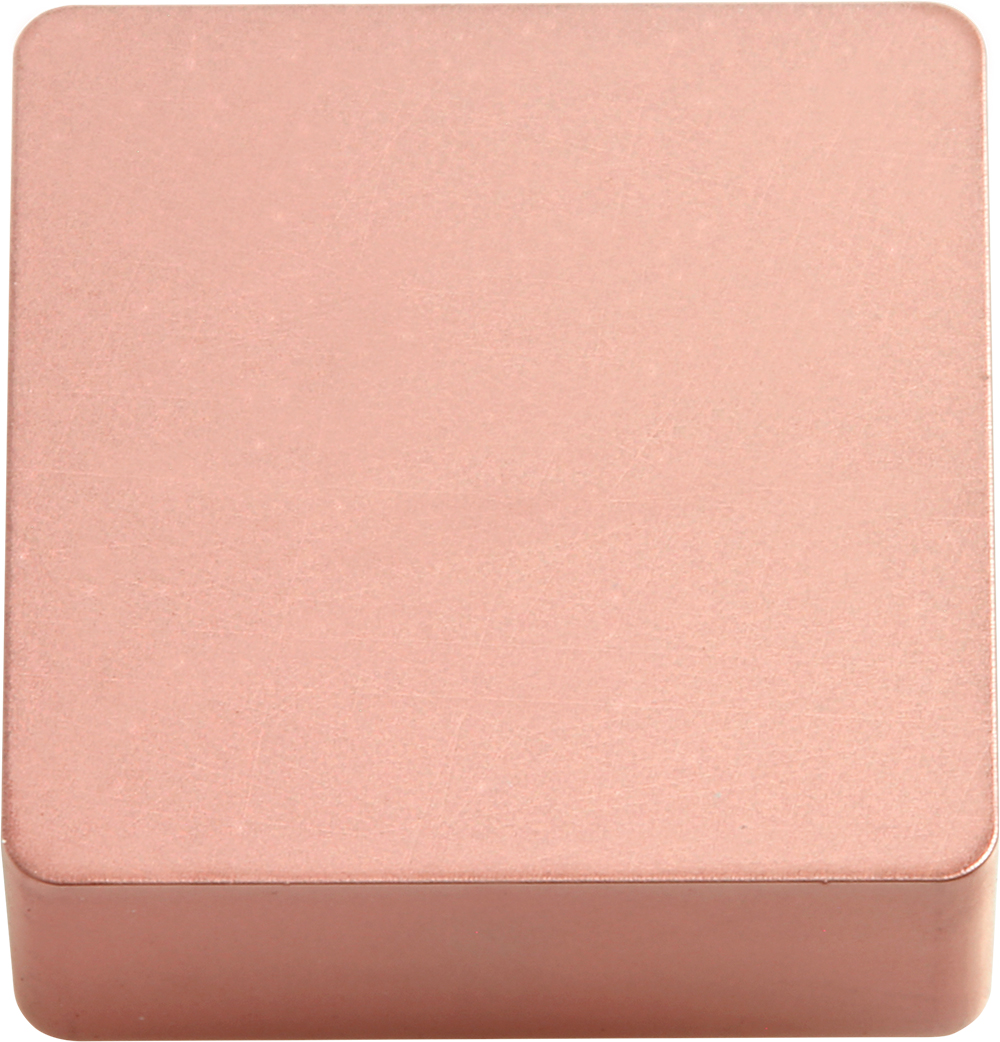

Kyocera SNM 433 CA320 Grade CVD Carbide, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TME05371
$29.70
Kyocera SNM 433 CA320 Grade CVD Carbide, 0 Degree, Square, Negative Rake Angle, Neutral Turning Insert for Heavy Interruption and Medium-Roughing in (K) Nodular Cast Iron and (K) Gray Cast Iron

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Neutral
Material
Carbide
Coating/Finish
CVD
Primary Workpiece Material
(K) Nodular Cast Iron
Corner Radius
3/64 Inch
Included Angle
90 degrees
Thickness
3/16 Inch
Style
SNM
Application
Boring, Chamfering, External Turning, Facing
Shape
90 Degree Square
Insert Holding Method
Clamp
Size
433
Old Material Number
8848558
ANSI Part Number
SNM433CA320
ISO Part Number
SNMN120412
Rake
Negative
Material Group / Grade
CA320
Corner Radius (Metric)
1.20
Number of Cutting Edges
8
Thickness (Metric)
4.76
Cutting Range
Medium-Roughing
Usage Classification
Heavy Interruption
Insert Included Angle
90 degrees
Inscribed Circle (Metric)
12.70
Inscribed Circle
1/2 Inch
Pack quantity
10
