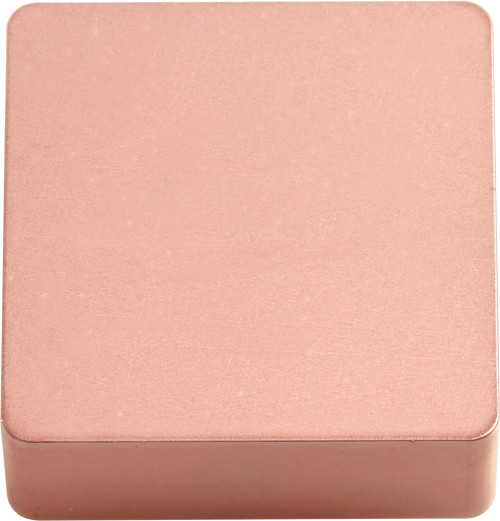

Kyocera SNM 433 CA310 Grade CVD Carbide, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TMC05371
$29.70
Kyocera SNM 433 CA310 Grade CVD Carbide, 0 Degree, Square, Negative Rake Angle, Neutral Turning Insert for Continuous and Medium-Roughing in (K) Gray Cast Iron and (K) Nodular Cast Iron

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Neutral
Material
Carbide
Coating/Finish
CVD
Primary Workpiece Material
(K) Gray Cast Iron
Corner Radius
3/64 Inch
Included Angle
90 degrees
Thickness
3/16 Inch
Style
SNM
Application
Boring, Chamfering, External Turning, Facing
Shape
90 Degree Square
Insert Holding Method
Clamp
Size
433
Old Material Number
8848352
ANSI Part Number
SNM433CA310
ISO Part Number
SNMN120412
Rake
Negative
Material Group / Grade
CA310
Corner Radius (Metric)
1.20
Number of Cutting Edges
8
Thickness (Metric)
4.76
Cutting Range
Medium-Roughing
Usage Classification
Continuous
Insert Included Angle
90 degrees
Inscribed Circle (Metric)
12.70
Inscribed Circle
1/2 Inch
Pack quantity
10
