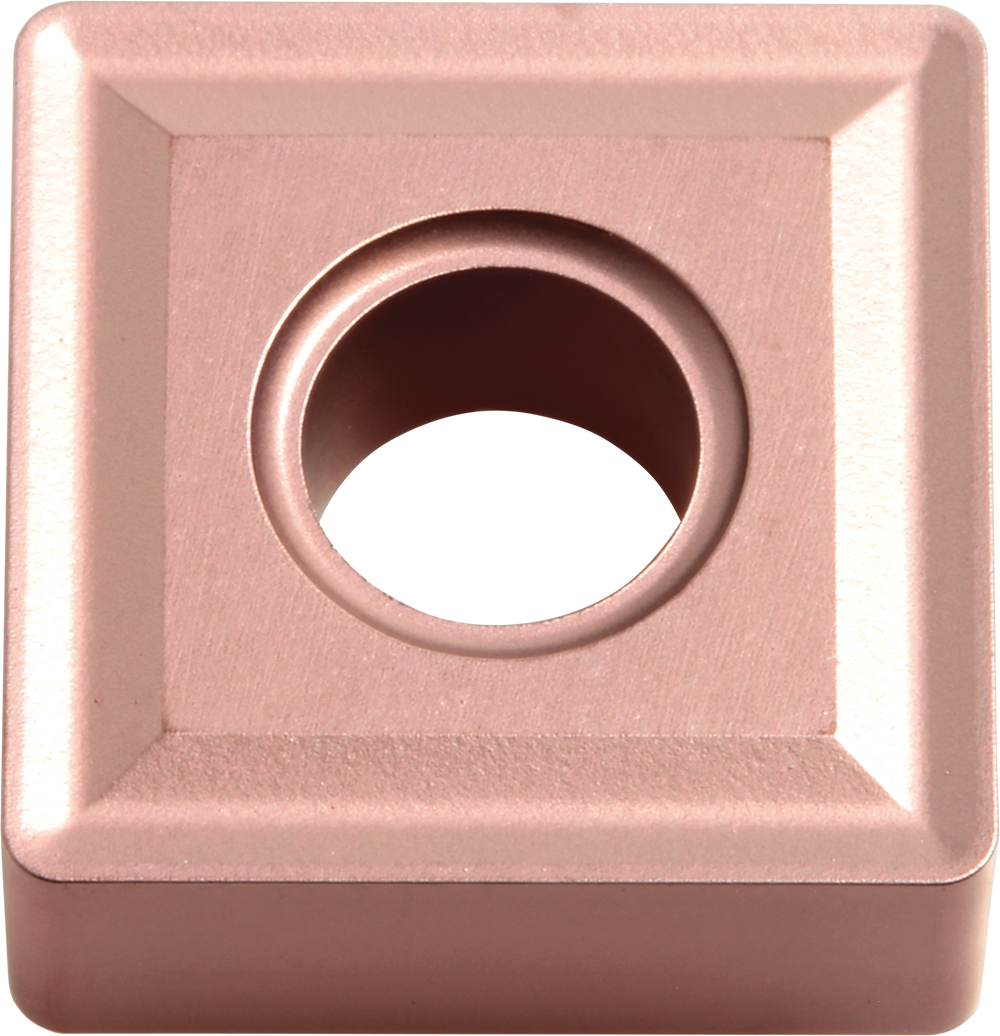

Kyocera Turning Insert SNMG434 CA115P: TML00191

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TML00191
$18.77

Kyocera Turning Insert SNMG434 CA115P, manufacturer part number TML00191.

Specifications: IC Size: 1/2 in (12.70 mm); Insert Thickness: 3/16 in (4.76 mm); Corner Radius: 1/16 in (1.60 mm); Insert Holding Method: Screw or Clamp; Rake: Negative; Number of Cutting Edges: 8; Cutting Range: Roughing; Usage Classification: Continuous to Light Interruption; Insert Size: 434; Hand Direction: Neutral; Insert Style: SNMG; ANSI Designation: SNMG434CA115P; ISO Designation: SNMG120416; Included Angle: 90 degrees; Machining Operations: Boring, Chamfering, External Turning, Facing; Insert Grade: CA115P; Workpiece Material: Steel; Insert Shape: Square; Coating Process: CVD.

Material: Carbide. Coating/Finish: TiCN/Al2O3/TiN. Series: ISOI. Unit of measure: Inch.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
Carbide
Coating/Finish
TiCN/Al2O3/TiN
Insert Thickness (Fractional)
3/16
Corner Radius (Fractional)
1/16
Included Angle
90
ANSI Designation
SNMG434CA115P
Insert Style
SNMG
Insert Thickness (Metric)
4.76
Insert Shape
Square
Insert Holding Method
Screw or Clamp
Insert Size
434
Machining Operations
Boring, Chamfering, External Turning, Facing
Insert Grade
CA115P
Rake
Negative
IC Size (Metric)
12.70
Corner Radius (Metric)
1.60
Number of Cutting Edges
8
Workpiece Material
Steel
Cutting Range
Roughing
Usage Classification
Continuous to Light Interruption
IC Size (Fractional)
1/2
Coating Process
CVD
ISO Designation
SNMG120416
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/CA115P_CA125P_CVD_Coated_Carbide_for_Steel.pdf
