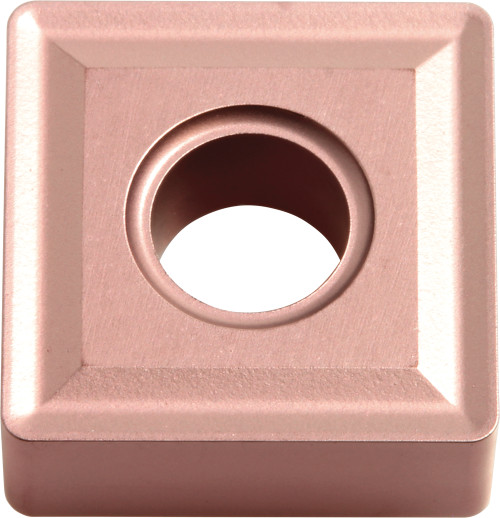

Kyocera Turning Insert SNMG434 CA310: TMC05153

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TMC05153
$18.77

Kyocera ISOI turning insert for cast iron, 1/2 in (12.70 mm) IC, square shape, negative rake, 8 cutting edges, roughing cutting range, screw or clamp insert holding, neutral hand. Carbide, TiCN/Al2O3/Ti (CVD) coating. Manufacturer part number TMC05153.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
Carbide
Coating/Finish
TiCN/Al2O3/Ti
Insert Thickness (Fractional)
3/16
Corner Radius (Fractional)
1/16
Included Angle
90
ANSI Designation
SNMG434CA310
Insert Style
SNMG
Insert Thickness (Metric)
4.76
Insert Shape
Square
Insert Holding Method
Screw or Clamp
Insert Size
434
Machining Operations
Boring, Chamfering, External Turning, Facing
Insert Grade
CA310
Rake
Negative
IC Size (Metric)
12.70
Corner Radius (Metric)
1.60
Number of Cutting Edges
8
Workpiece Material
Cast Iron
Cutting Range
Roughing
Usage Classification
Continuous
IC Size (Fractional)
1/2
Coating Process
CVD
ISO Designation
SNMG120416
Pack quantity
10
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Automotive_Tooling_Solutions.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/CA3-Series_W.pdf
