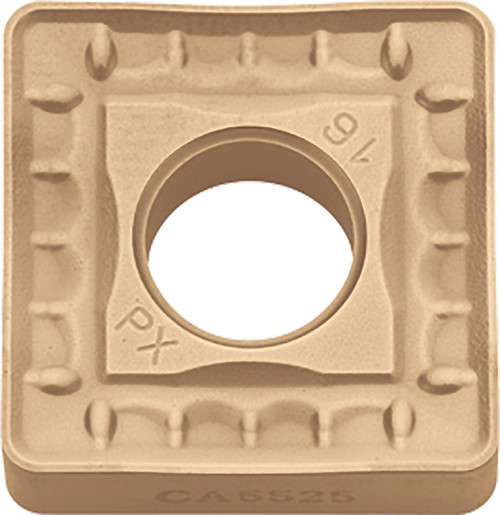

Kyocera Turning Insert SNMM644PX CA515: TAB05346

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TAB05346
$46.88

Kyocera Turning Insert SNMM644PX CA515, manufacturer part number TAB05346.

Specifications: IC Size: 3/4 in (19.05 mm); Insert Thickness: 1/4 in (6.35 mm); Corner Radius: 1/16 in (1.60 mm); Insert Holding Method: Screw or Clamp; Old Material Number: 8839531; Rake: Negative; Number of Cutting Edges: 4; Cutting Range: Roughing; Usage Classification: Continuous; Insert Size: 644; Hand Direction: Neutral; Insert Style: SNMM; ANSI Designation: SNMM644PXCA515; Chip Breaker Type: PX; ISO Designation: SNMM190616PX; Included Angle: 90 degrees; Machining Operations: Boring, Chamfering, External Turning, Facing; Insert Grade: CA515; Workpiece Material: Steel; Insert Shape: Square; Coating Process: CVD.

Material: Carbide. Coating/Finish: TiCN/Al2O3/TiN. Series: ISOI. Unit of measure: Inch.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
Carbide
Coating/Finish
TiCN/Al2O3/TiN
Insert Thickness (Fractional)
1/4
Corner Radius (Fractional)
1/16
Included Angle
90
ANSI Designation
SNMM644PXCA515
Insert Style
SNMM
Insert Thickness (Metric)
6.35
Insert Shape
Square
Insert Holding Method
Screw or Clamp
Insert Size
644
Old Material Number
8839531
Machining Operations
Boring, Chamfering, External Turning, Facing
Insert Grade
CA515
Rake
Negative
IC Size (Metric)
19.05
Corner Radius (Metric)
1.60
Number of Cutting Edges
4
Workpiece Material
Steel
ISO Designation
SNMM190616PX
Cutting Range
Roughing
Usage Classification
Continuous
IC Size (Fractional)
3/4
Coating Process
CVD
Chip Breaker Type
PX
Pack quantity
10
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Aerospace_Tooling_Solutions_W.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/CA5_Series_W.pdf
