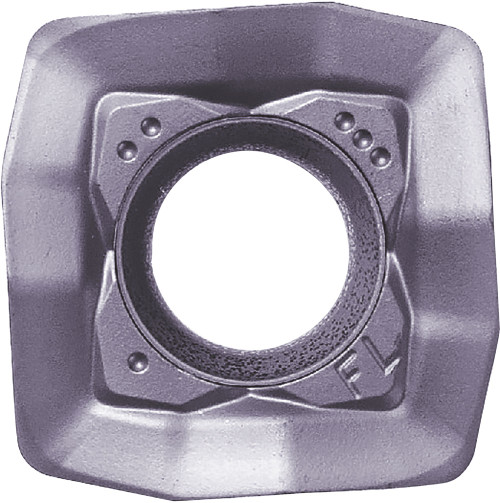

Kyocera SOMT 140514ERFL PR1525 Grade PVD Carbide, Indexable Milling Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLB05620
$31.16
Kyocera SOMT 140514ERFL PR1525 Grade PVD Carbide, Square, Positive Rake Angle, Right-Hand Milling Insert for Roughing in (P) Free-Cutting Steel, (P) Carbon/Alloy Steel, (P) Mold Steel and (M) Austenitic Stainless Steel

Specifications

Series
MFHR
Unit of Measure
Metric
Cutting Direction
Right
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(P) Free-Cutting Steel|(P) Carbon/Alloy Steel|(P) Mold Steel
Corner Radius
1.40 mm
Grade
PR1525
Inscribed Circle (Metric)
14.57
Thickness
5.56 mm
Style
SOMT
Application
Facing, Helical Milling, High Feed, Plunging, Pocketing, Ramping, Shouldering, Slotting
Thickness (Fractional)
7/32
Shape
90 Degree Square
Insert Holding Method
Screw
Old Material Number
8838893
ANSI Part Number
SOMT140514ERFLPR1525
ISO Part Number
SOMT140514ER-FL
Rake
Positive
Number of Cutting Edges
4
Insert Size
140514
Chipbreaker
ER-FL
Cutting Range
Roughing
Corner Radius (Decimal)
0.06
Insert Included Angle (Degree)
90 degrees
Inscribed Circle (Decimal)
0.57
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/MFH-Raptor_W.pdf
