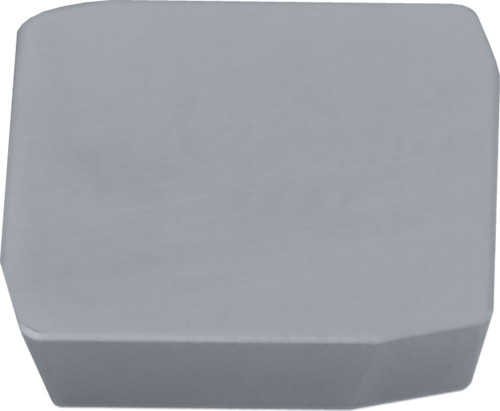

Kyocera SPKN 53EDFR KW10 Grade Uncoated Carbide, Indexable Milling Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TWE00815
$36.63
Kyocera SPKN 53EDFR KW10 Grade Uncoated Carbide, Square, Positive Rake Angle, Right-Hand Milling Insert for Roughing in (N) Non-Ferrous Metals and (K) Gray Cast Iron, (S) Titanium Alloy

Specifications

Series
GPM
Unit of Measure
Metric
Cutting Direction
Right
Material
Carbide
Coating/Finish
Uncoated
Primary Workpiece Material
(N) Non-Ferrous Materials
Grade
KW10
Inscribed Circle (Metric)
15.88
Thickness
4.76 mm
Style
SPKN
Application
Chamfering, Facing, Shouldering
Thickness (Fractional)
3/16
Shape
90 Degree Square
Insert Holding Method
Clamp
Old Material Number
8805823
ANSI Part Number
SPKN53EDFRKW10
ISO Part Number
SPKN1504EDFR
Rake
Positive
Number of Cutting Edges
4
Insert Size
53
Chipbreaker
EDFR
Cutting Range
Roughing
Inscribed Circle (Fractional)
5/8
Insert Included Angle (Degree)
90 degrees
Pack quantity
10
Kyocera SPKN 53EDFR KW10 Grade Uncoated Carbide, Indexable Milling Insert
$36.63
