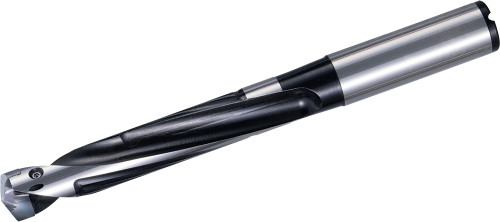

Kyocera Replaceable Tip Drill SS0625DRA150M5: .5906-.6295" Cut Dia, 5xD, .6252" Shank, THD11398

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-THD11398
$626.40

Kyocera DRA replaceable tip drill, 2 flutes, straight shank, internal coolant. Steel body. Manufacturer part number THD11398.

Specifications

Series
DRA
Unit of Measure
Inch
Shank Type
Straight
Hand Direction
Right
Material
Steel
Overall Length (Decimal)
5.9449
Cutting Diameter Maximum (Decimal)
0.6295
Number of Flutes
2
Connection Diameter (Decimal)
0.6250
Size System
Decimal
ANSI Designation
SS0625DRA150M5
Insert Holding Method
Screw
Coolant Option
Internal Coolant
ISO Designation
SS0625-DRA150M-5
Machining Operations
Drilling
Insert Style
SS…DRA
Usable Length (Decimal)
3.1500
Usable Length (Metric)
80.01
Cutting Diameter Minimum (Decimal)
0.5906
Overall Length (Metric)
151.00
Cutting Diameter (Decimal)
0.5906 - 0.6295
Cutting Diameter (Metric)
15.00 - 15.99
Cutting Diameter Minimum (Metric)
15.00
Cutting Diameter Maximum (Metric)
15.99
Connection Diameter (Metric)
15.88
Number of Inserts
1
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/DRA_Magic_Drills_W.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Automotive_Tooling_Solutions.pdf
LxD Ratio
5xD
