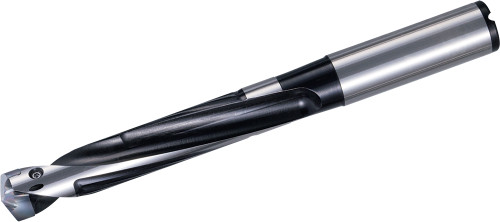

Kyocera Replaceable Tip Drill SS16DRA145M5, manufacturer part number THD08146.
Specifications: Cutting Diameter: 14.50 - 14.99 mm (0.5709 - 0.5902 in); Overall Length: 144.00 mm (5.6693 in); Number of Flutes: 2; Insert Holding Method: Screw; Old Material Number: 8608197; Connection Diameter: 16.00 mm (0.6299 in); Usable Length: 75.00 mm (2.9528 in); Cutting Diameter Minimum: 14.50 mm (0.5709 in); Cutting Diameter Maximum: 14.99 mm (0.5902 in); Number of Inserts: 1; Coolant Option: Internal Coolant; Hand Direction: Right; Insert Style: SS…DRA; ANSI Designation: SS16DRA145M5; ISO Designation: SS16-DRA145M-5; Machining Operations: Drilling; LxD Ratio: 5xD; Shank Type: Straight.
Material: Steel. Series: DRA. Unit of measure: Metric.
