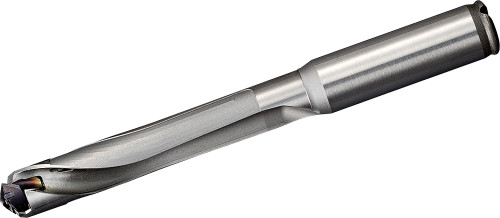

Kyocera SS16DRC145M5, DRC Magic Drill 14.50-14.99mm Cutting Diameter, 5xD, Replaceable Tip Drill

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-THD07146
$721.46
Kyocera SS16DRC145M5, DRC Magic Drill 14.50-14.99mm Cutting Diameter, 16.00mm Diameter Straight Shank, Coolant-Through Replaceable Tip Drill

Specifications

Series
DRC
Unit of Measure
Metric
Shank Type
Straight Shank
Cutting Direction
Right
Material
Steel
Weldon Flat
No
Max. Cutting Diameter
14.99 mm
Number of Flutes
2
Shank Diameter
16 mm
Grade
GR99
Application
Drilling
Insert Holding Method
Screw
Coolant Through
Yes
Old Material Number
8827468
ANSI Part Number
SS16DRC145M5
ISO Part Number
SS16-DRC145M-5
Connection Diameter (Decimal)
0.63
Tool Style
SS…DRC
Usable Length (Decimal)
2.95
Usable Length (Metric)
75
Min. Cutting Diameter
14.50 mm
Depth x Diameter Ratio
5 x D
Cutting Diameter (Decimal)
0.57 - 0.59
Cutting Diameter (Metric)
14.50 - 14.99
Cutting Diameter Minimum (Decimal)
0.57
Cutting Diameter Maximum (Decimal)
0.59
Number of Inserts
1
Kyocera SS16DRC145M5, DRC Magic Drill 14.50-14.99mm Cutting Diameter, 5xD, Replaceable Tip Drill
$721.46
