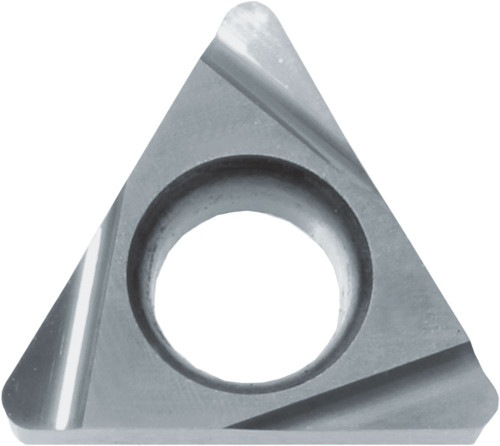

Kyocera TBGT 12102L TN60 Grade Uncoated Cermet, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TSJ01498
$24.44
Kyocera TBGT 12102L TN60 Grade Uncoated Cermet, 5 Degree, Triangle, Positive Rake Angle, Left-Hand Turning Insert for Continuous and Finishing in (P) Carbon/Alloy Steel

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Left-Hand
Material
Cermet
Coating/Finish
Uncoated
Primary Workpiece Material
(P) Carbon/Alloy Steel
Included Angle
60 degrees
Thickness
1/16 Inch
Style
TBGT
Application
Back Boring, Boring, Copying, Internal Facing
Shape
60 Degree Triangle
Insert Holding Method
Screw or Clamp
Size
12102
Old Material Number
8807930
ANSI Part Number
TBGT12102LTN60
ISO Part Number
TBGT060101L
Rake
Positive
Material Group / Grade
TN60
Corner Radius (Metric)
0.10
Number of Cutting Edges
3
Thickness (Metric)
1.59
Cutting Range
Finishing
Usage Classification
Continuous
Insert Included Angle
60 degrees
Inscribed Circle (Metric)
3.97
Inscribed Circle
5/32 Inch
Pack quantity
10
