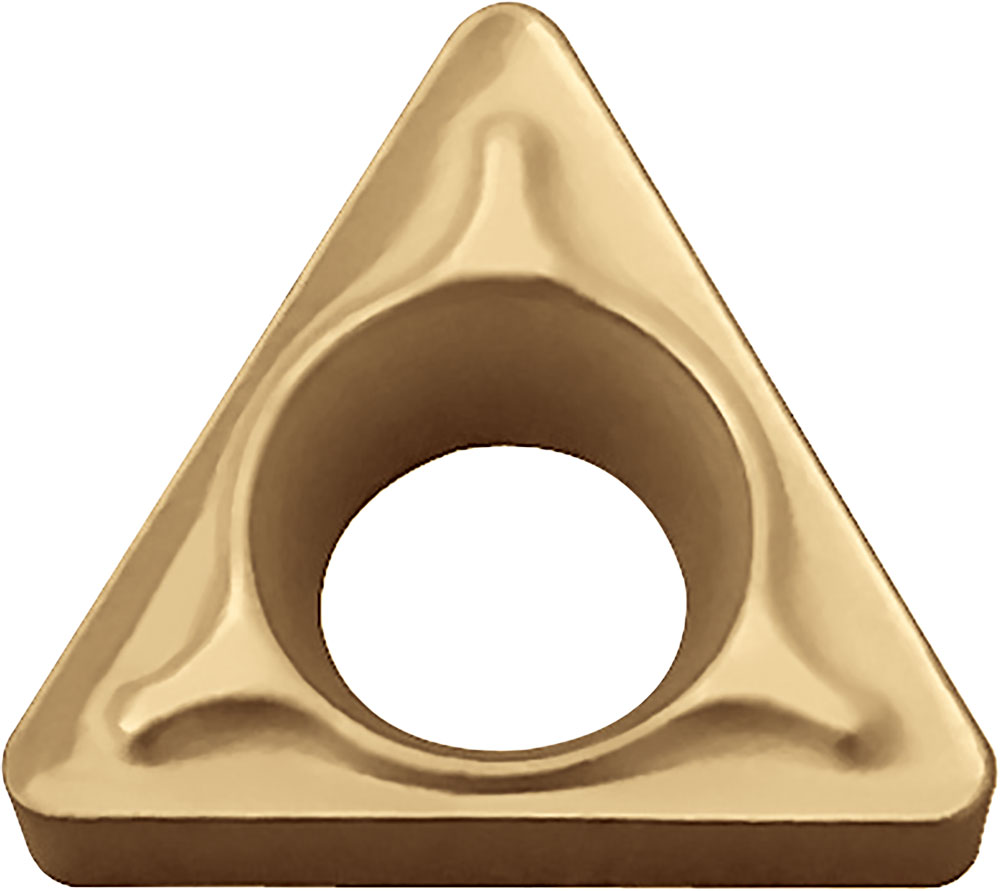

Kyocera TBMT 1211DP CA115P Grade CVD Carbide, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TML00390
$26.50
Kyocera TBMT 1211DP CA115P Grade CVD Carbide, 60 Degree Triangle, Positive Rake Angle, Neutral Turning Insert for Light Interruption and Finishing in (P) Carbon/Alloy Steel

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Neutral
Material
Carbide
Coating/Finish
CVD
Primary Workpiece Material
(P) Carbon/Alloy Steel
Corner Radius
1/64 Inch
Included Angle
60 degrees
Thickness
1/16 Inch
Style
TBMT
Application
Back Boring, Boring, Copying, Internal Facing
Shape
60 Degree Triangle
Insert Holding Method
Screw or Clamp
Size
1211
ANSI Part Number
TBMT1211DPCA115P
ISO Part Number
TBMT060104DP
Rake
Positive
Material Group / Grade
CA115P
Corner Radius (Metric)
0.40
Number of Cutting Edges
3
Thickness (Metric)
1.59
Chipbreaker
DP
Cutting Range
Finishing
Usage Classification
Light Interruption
Insert Included Angle
60 degrees
Inscribed Circle (Metric)
3.97
Inscribed Circle
5/32 Inch
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/CA115P_CA125P_CVD_Coated_Carbide_for_Steel.pdf
