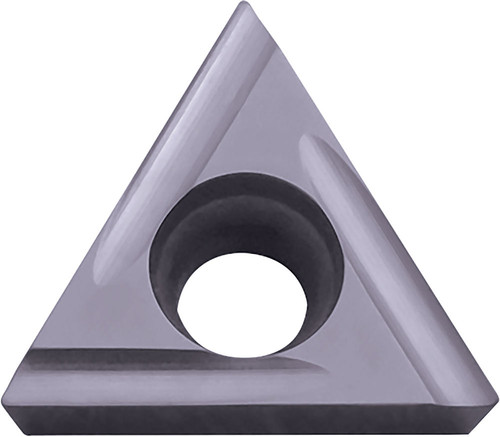

Kyocera TCGT 151502MFRU PR1225 Grade PVD Carbide, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TKE05773
$39.31
Kyocera TCGT 151502MFRU PR1225 Grade PVD Carbide, 7 Degree, Triangle, Positive Rake Angle, Right-Hand Turning Insert for Light Interruption and Finishing in (M) Stainless Steel and (P) Carbon/Alloy Steel

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Right-Hand
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(M) Stainless Steel
Included Angle
60 degrees
Thickness
3/32 Inch
Style
TCGT
Application
External Turning
Shape
60 Degree Triangle
Insert Holding Method
Screw or Clamp
Size
151502
Old Material Number
8831952
ANSI Part Number
TCGT151502MFRUPR1225
ISO Part Number
TCGT080201MFR-U
Rake
Positive
Material Group / Grade
PR1225
Corner Radius (Metric)
0.10
Number of Cutting Edges
3
Thickness (Metric)
2.38
Chipbreaker
U
Cutting Range
Finishing
Usage Classification
Light Interruption
Insert Included Angle
60 degrees
Inscribed Circle (Metric)
4.76
Inscribed Circle
3/16 Inch
Pack quantity
10
Kyocera TCGT 151502MFRU PR1225 Grade PVD Carbide, Indexable Turning Insert
$39.31
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
