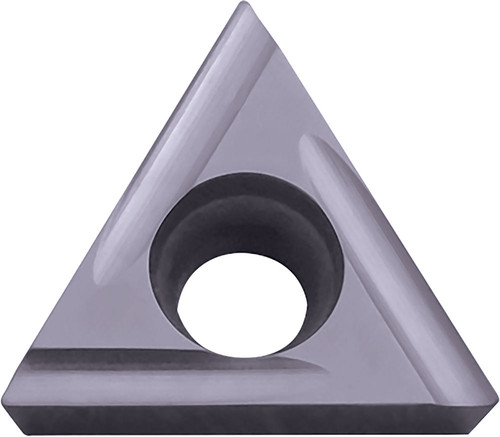

Kyocera TCGT 22013MFRU PR1225 Grade PVD Carbide, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TKE05781
$39.31
Kyocera TCGT 22013MFRU PR1225 Grade PVD Carbide, 7 Degree, Triangle, Positive Rake Angle, Right-Hand Turning Insert for Light Interruption and Finishing in (M) Stainless Steel and (P) Carbon/Alloy Steel

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Right-Hand
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(M) Stainless Steel
Included Angle
60 degrees
Thickness
1/8 Inch
Style
TCGT
Application
External Turning
Shape
60 Degree Triangle
Insert Holding Method
Screw or Clamp
Size
22013
Old Material Number
8831956
ANSI Part Number
TCGT22013MFRUPR1225
ISO Part Number
TCGT1103005MFR-U
Rake
Positive
Material Group / Grade
PR1225
Corner Radius (Metric)
0.05
Number of Cutting Edges
3
Thickness (Metric)
3.18
Chipbreaker
U
Cutting Range
Finishing
Usage Classification
Light Interruption
Insert Included Angle
60 degrees
Inscribed Circle (Metric)
6.35
Inscribed Circle
1/4 Inch
Pack quantity
10
Kyocera TCGT 22013MFRU PR1225 Grade PVD Carbide, Indexable Turning Insert
$39.31
