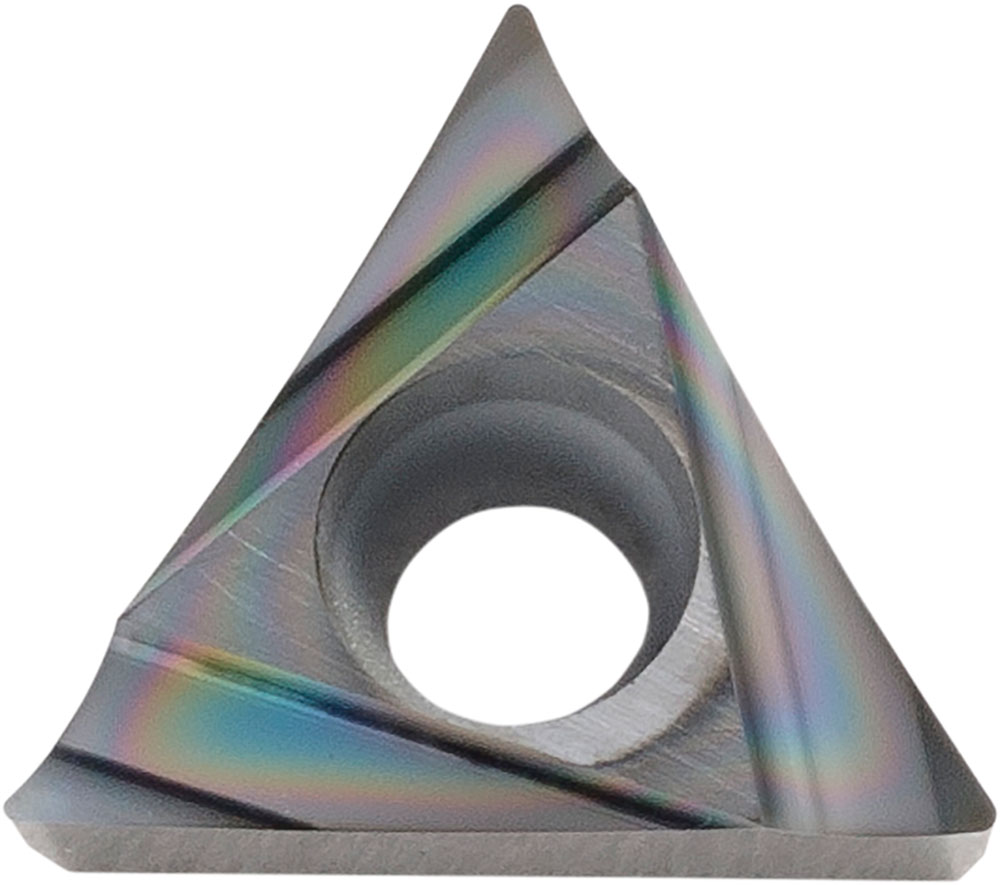

Kyocera TCGT 221LA3 PDL010 Grade DLC Carbide, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLK04613
$43.24
Kyocera TCGT 221LA3 PDL010 Grade DLC Carbide, 7 Degree, Triangle, Positive Rake Angle, Left-Hand Turning Insert for Continuous and Finishing-Medium in (N) Non-Ferrous Metals

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Left-Hand
Material
Carbide
Coating/Finish
DLC
Primary Workpiece Material
(N) Non-Ferrous Materials
Corner Radius
1/64 Inch
Included Angle
60 degrees
Thickness
1/8 Inch
Style
TCGT
Application
External Turning
Shape
60 Degree Triangle
Insert Holding Method
Screw or Clamp
Size
221
Old Material Number
8860866
ANSI Part Number
TCGT221LA3PDL010
ISO Part Number
TCGT110304L-A3
Rake
Positive
Material Group / Grade
PDL010
Corner Radius (Metric)
0.40
Number of Cutting Edges
3
Thickness (Metric)
3.18
Chipbreaker
A3
Cutting Range
Finishing-Medium
Usage Classification
Continuous
Insert Included Angle
60 degrees
Inscribed Circle (Metric)
6.35
Inscribed Circle
1/4 Inch
Pack quantity
10
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/PDL010_PDL025_Inserts_for_Aluminum.pdf
Kyocera TCGT 221LA3 PDL010 Grade DLC Carbide, Indexable Turning Insert
$43.24
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
