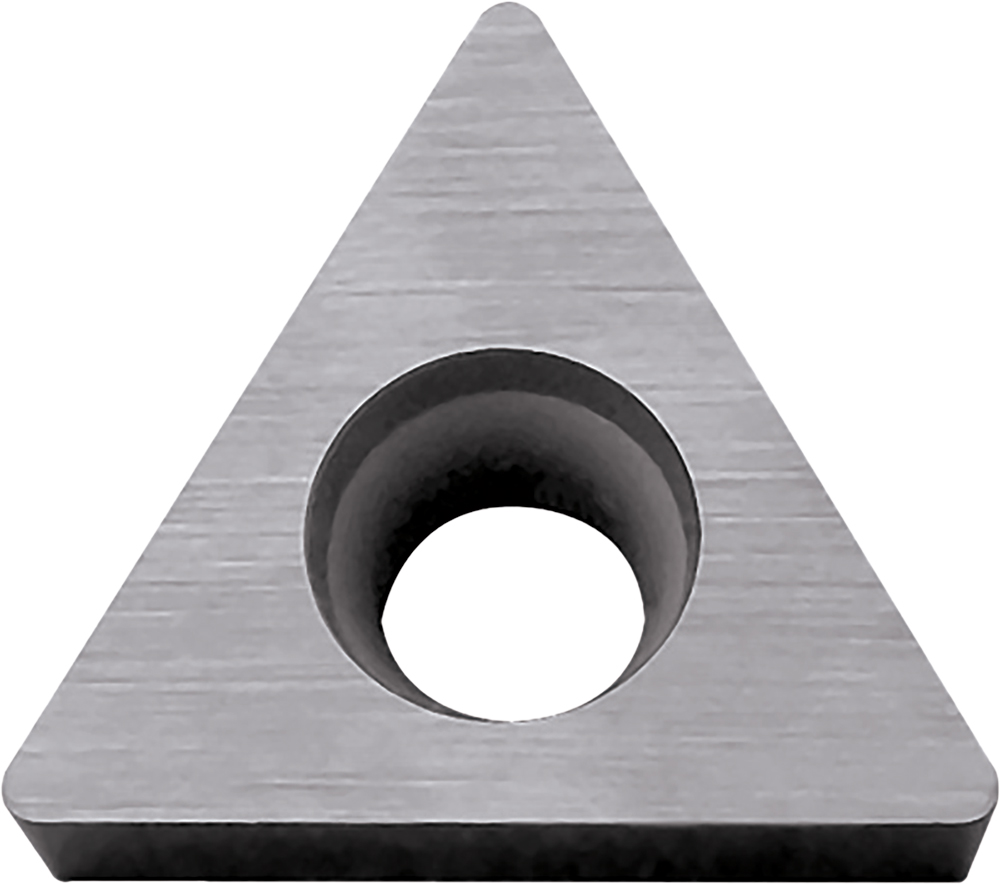

Kyocera TCGW 221 KW10 Grade Uncoated Carbide, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TWE00450
$26.95
Kyocera TCGW 221 KW10 Grade Uncoated Carbide, 7 Degree, Triangle, Positive Rake Angle, Neutral Turning Insert for Light Interruption and Medium in (N) Non-Ferrous Metals, (S) Titanium Alloy and (K) Gray Cast Iron

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Neutral
Material
Carbide
Coating/Finish
Uncoated
Primary Workpiece Material
(N) Non-Ferrous Materials|(S) Titanium Alloy
Corner Radius
1/64 Inch
Included Angle
60 degrees
Thickness
1/8 Inch
Style
TCGW
Application
External Turning
Shape
60 Degree Triangle
Insert Holding Method
Screw or Clamp
Size
221
Old Material Number
8805835
ANSI Part Number
TCGW221KW10
ISO Part Number
TCGW110304
Rake
Positive
Material Group / Grade
KW10
Corner Radius (Metric)
0.40
Number of Cutting Edges
3
Thickness (Metric)
3.18
Cutting Range
Medium
Usage Classification
Light Interruption
Insert Included Angle
60 degrees
Inscribed Circle (Metric)
6.35
Inscribed Circle
1/4 Inch
Pack quantity
10
Kyocera TCGW 221 KW10 Grade Uncoated Carbide, Indexable Turning Insert
$26.95
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
