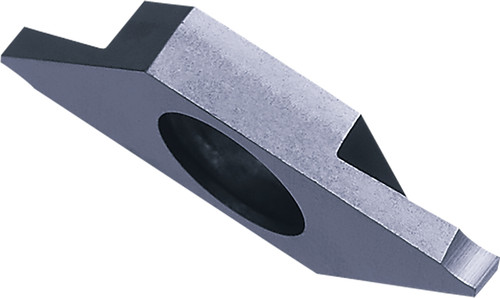

Kyocera TKF 12L150S PR1535 Grade PVD Carbide, Indexable Cut-Off Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLC16013
$72.51
Kyocera TKF 12L150S PR1535 Grade PVD Carbide, 1.50mm Cutting Width, Left-Hand Cut-Off Insert for Light Interruption and Medium-Roughing in (S) Heat-Resistant Alloy and (M) Stainless Steel

Specifications

Series
KTKF
Unit of Measure
Metric
Cutting Direction
Left
Material
Carbide
Primary Workpiece Material
(S) Heat-Resistant Alloy
Cutting Width
1.50 mm
Application
Cut-Off, Small Parts Machining
Insert Holding Method
Screw
Old Material Number
8844646
ANSI Part Number
TKF12L150SPR1535
ISO Part Number
TKF12L150-S
Rake
Positive
Material Group / Grade
PR1535
Tool Style
TKF
Max Depth of Cut (Decimal)
0.24
Max Depth of Cut (Metric)
6
Cutting Width (Decimal)
0.06
Cutting Width (Metric)
1.50
Cutting Width Minimum (Decimal)
0.06
Cutting Width Minimum (Metric)
1.50
Cutting Width Maximum (Decimal)
0.06
Cutting Width Maximum (Metric)
1.50
Corner Radius (Metric)
0.03
Number of Cutting Edges
2
Insert Size
12
Corner Radius (Decimal)
0.001
Thickness (Decimal)
0.34
Thickness (Metric)
8.70
Chipbreaker
S
Coating Process
PVD
Cutting Range
Medium-Roughing
Full Radius
No
Usage Classification
Light Interruption
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/KTKF_Series.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Small_Part_Tooling_Solutions.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/JCT-Series_Coolant-Through_Holders.pdf
