Primary Workpiece Material
(N) Non-Ferrous Materials
Corner Radius (Metric)
0.10
Cutting Width (Decimal)
0.08
Application
Small Parts Machining|Traversing
Insert Holding Method
Screw
Old Material Number
8865209
ANSI Part Number

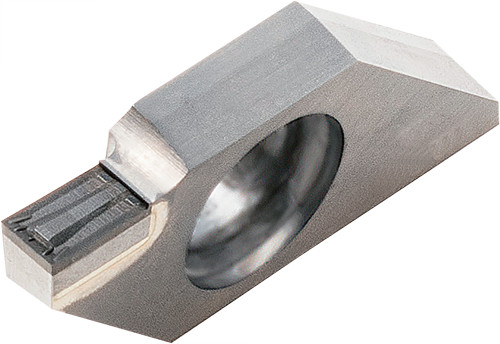

TKF12R200AGTKPD001
ISO Part Number
TKF12R200-AGT
Number of Cutting Edges
1
Usage Classification
Continuous
Corner Radius (Decimal)
0.004
Cutting Width Minimum (Decimal)
0.08
Cutting Width Minimum (Metric)
2
Cutting Width Maximum (Decimal)
0.08
Cutting Width Maximum (Metric)
2
Max Depth of Cut (Decimal)
0.19
Max Depth of Cut (Metric)
4.80
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/KTKF_Series.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Small_Part_Tooling_Solutions.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/Aluminum_Alloy_Machining_Solutions_for_Small_Parts.pdf
